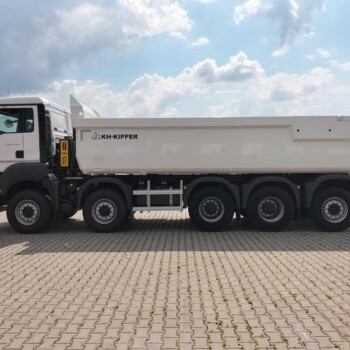

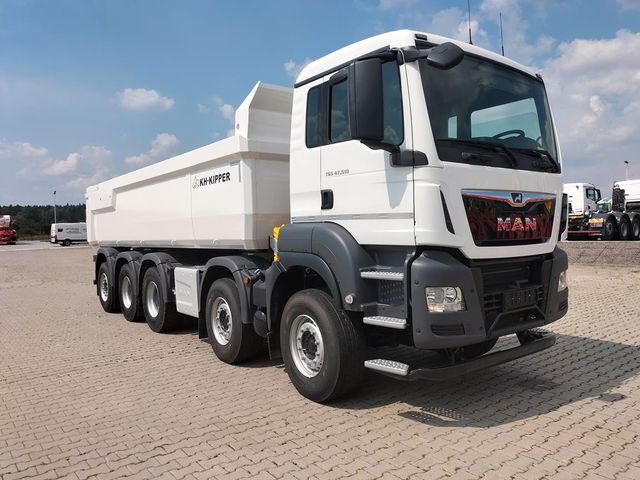

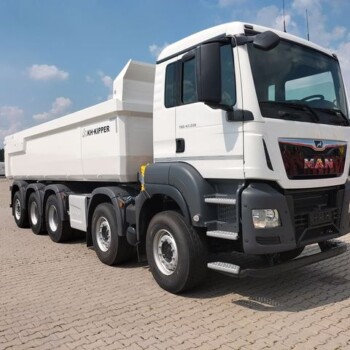

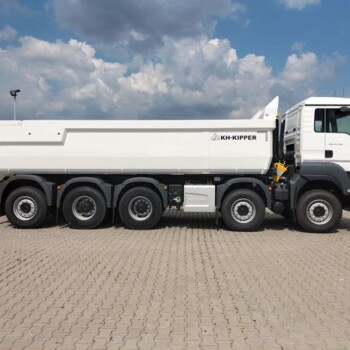

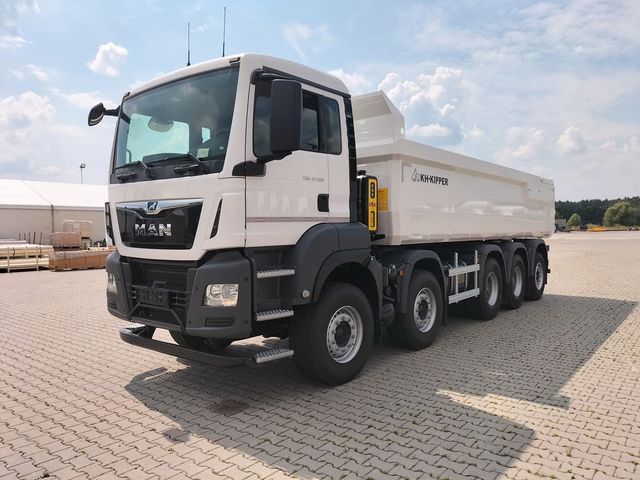

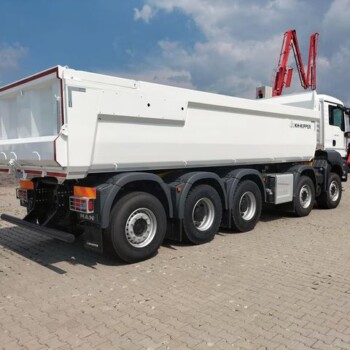

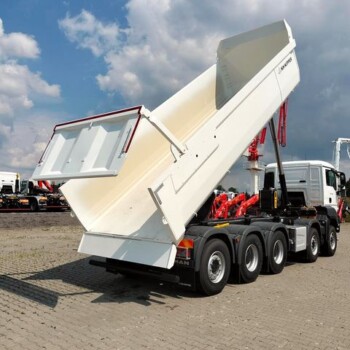

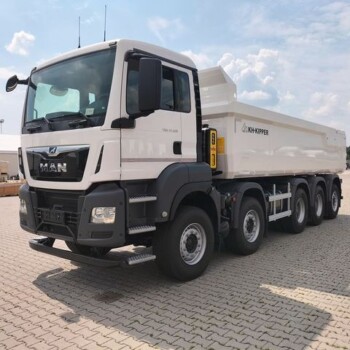

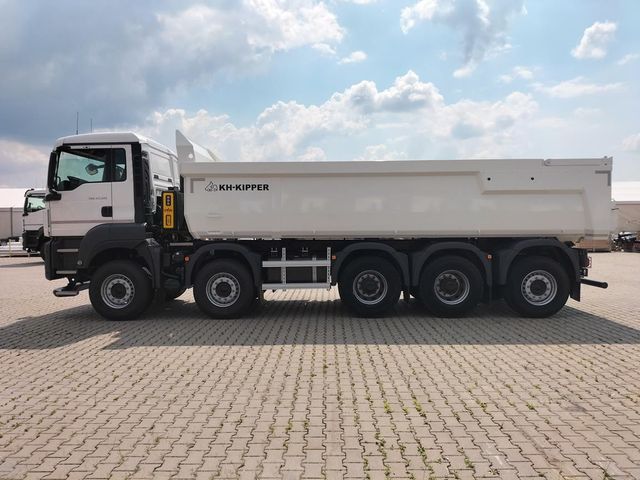

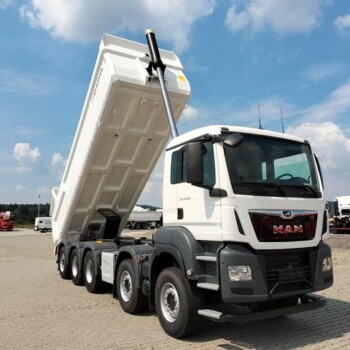

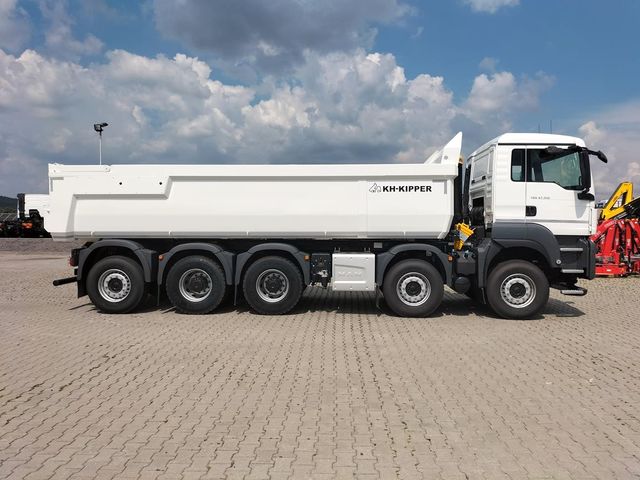

Wywrotka tylnozsypowa W1C na podwoziu MAN 47.510

W1C rear tipper on MAN 47.510 chassis

AVAILABLE QUANTITY: 1 PCS.

TIPPER TECHNICAL SPECIFICATION

Construction:
– L – internal length 7 200 mm
– B – overall width approx. 2 500 mm
– H – side wall height 1 200 mm
– V – volume approx. 20.6 m3
– floor 10 mm HARDOX450 steel,
– sides 8 mm HARDOX450 steel,
– rectangular cross-section body construction,
– front wall with a short roof,
– straight side walls,

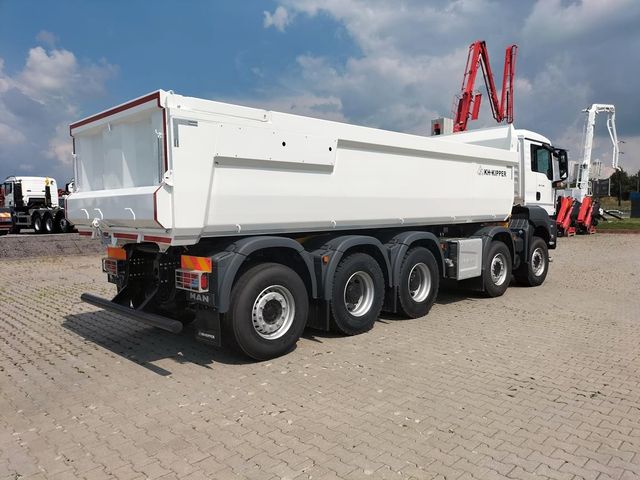

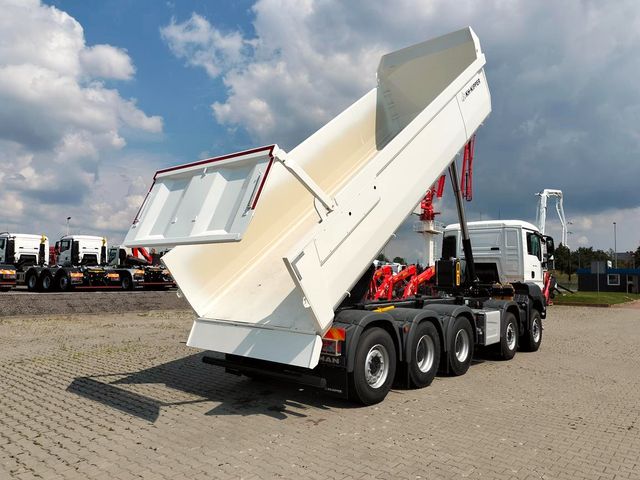

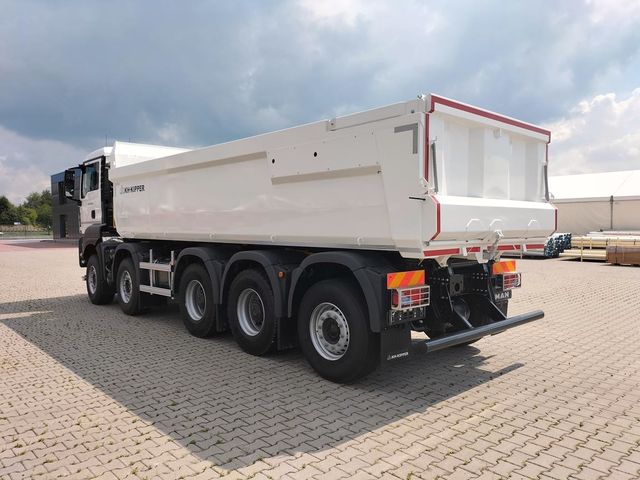

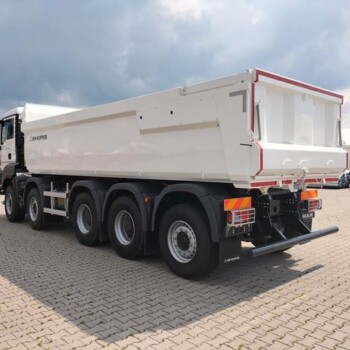

– tailgate with top hinges, hydraulically opened,
– Sneep rear flap, hydraulically opened,

Hydraulic system:

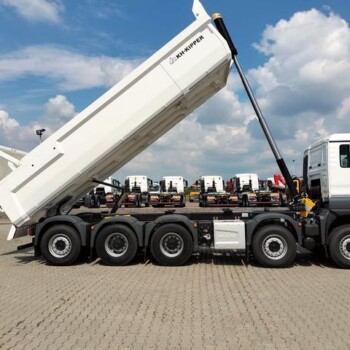

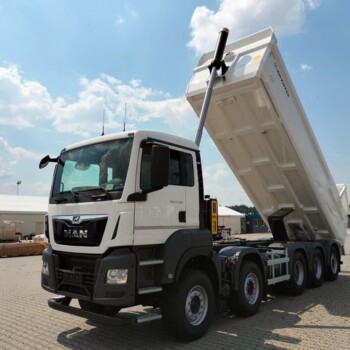

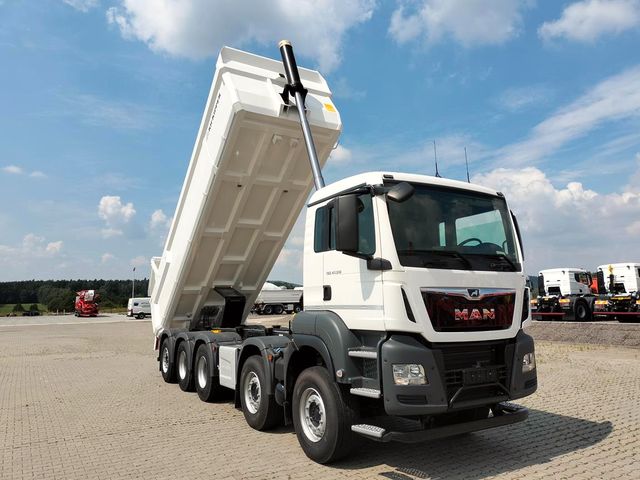

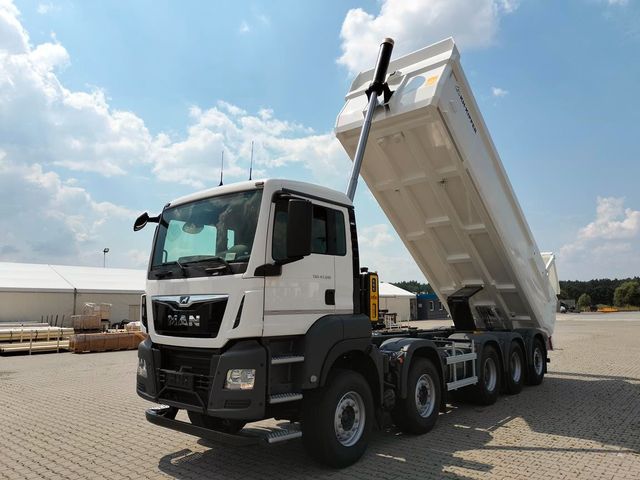

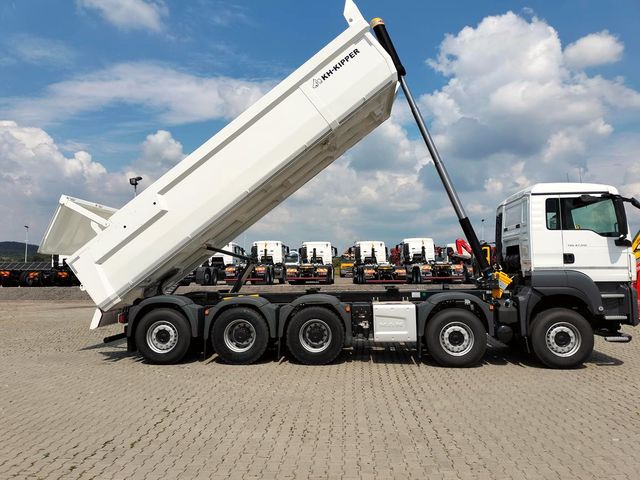

– HYVA FC hydraulic cylinder,
– HYVA dual-flow hydraulic pump,
– HYVA oil tank filled with HLP32 oil,
– 2-section hydraulic distributor for sneep + BT,

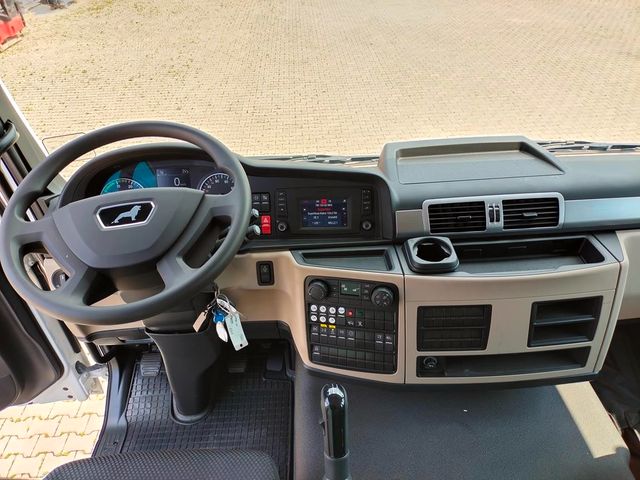

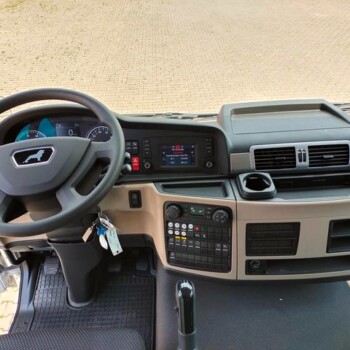

– electric tipping control in the cab,
– body-raised indicator in the driver’s cab,

Additional equipment:

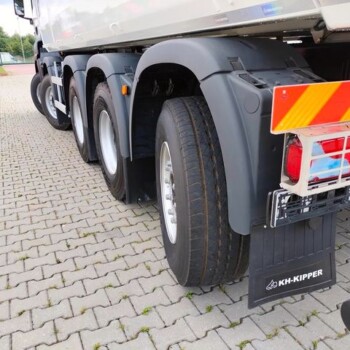

– MAN factory mudguards for the rear bogie,
– MAN factory rear underrun bar,
– homologated aluminium side underrun protection barriers,
– no spare wheel mount,
– preparation for mounting a tarpaulin on the front wall,
– access steps on the left side wall,
– scissor stabiliser between the body and the frame,
– maintenance prop under the cargo body,

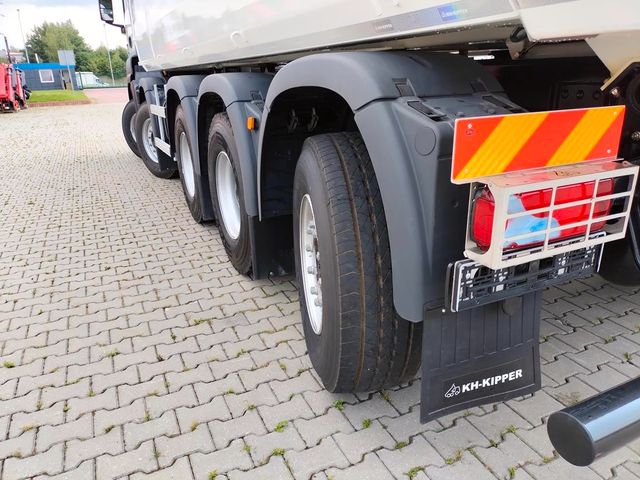

– rear light guards with tilting grille,
– reflective tape marking,
– yellow marker lights,
– distinguishing plates,
– tipper shot-blasted, primed and painted in one specified colour from the RAL palette,
– body fitted on the chassis.

Body weight: approx. 4800 kg (+/-2%)
