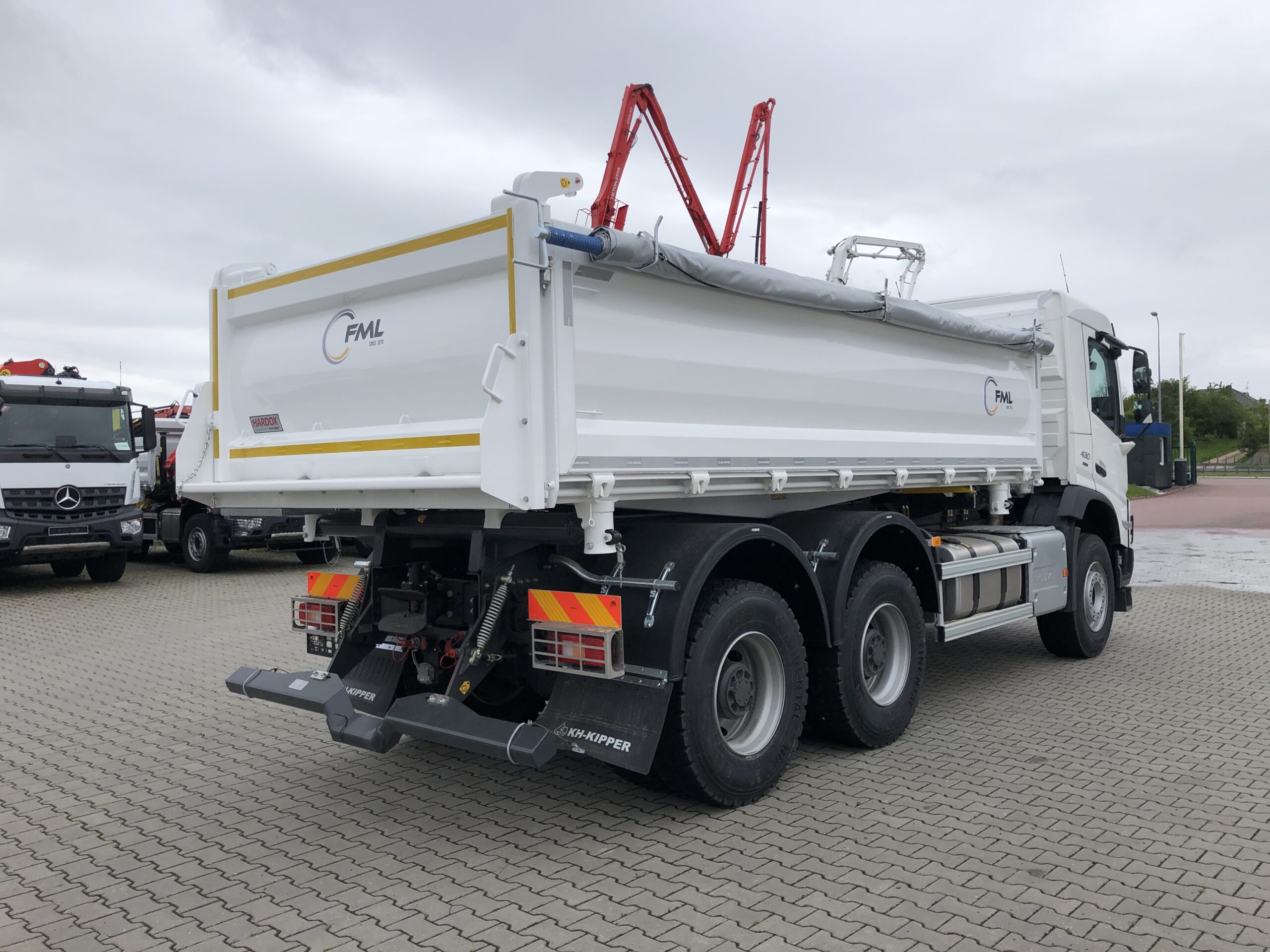

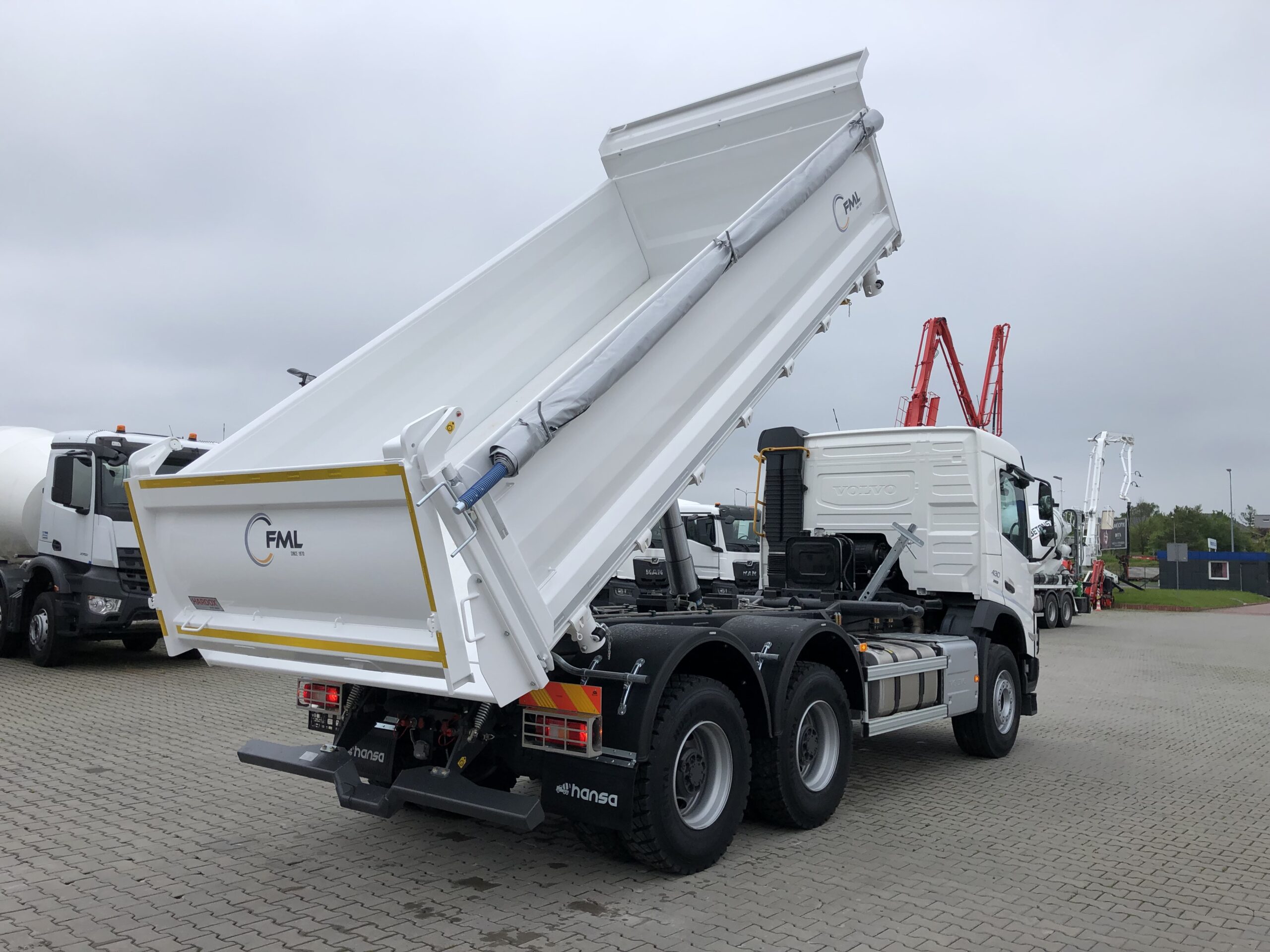

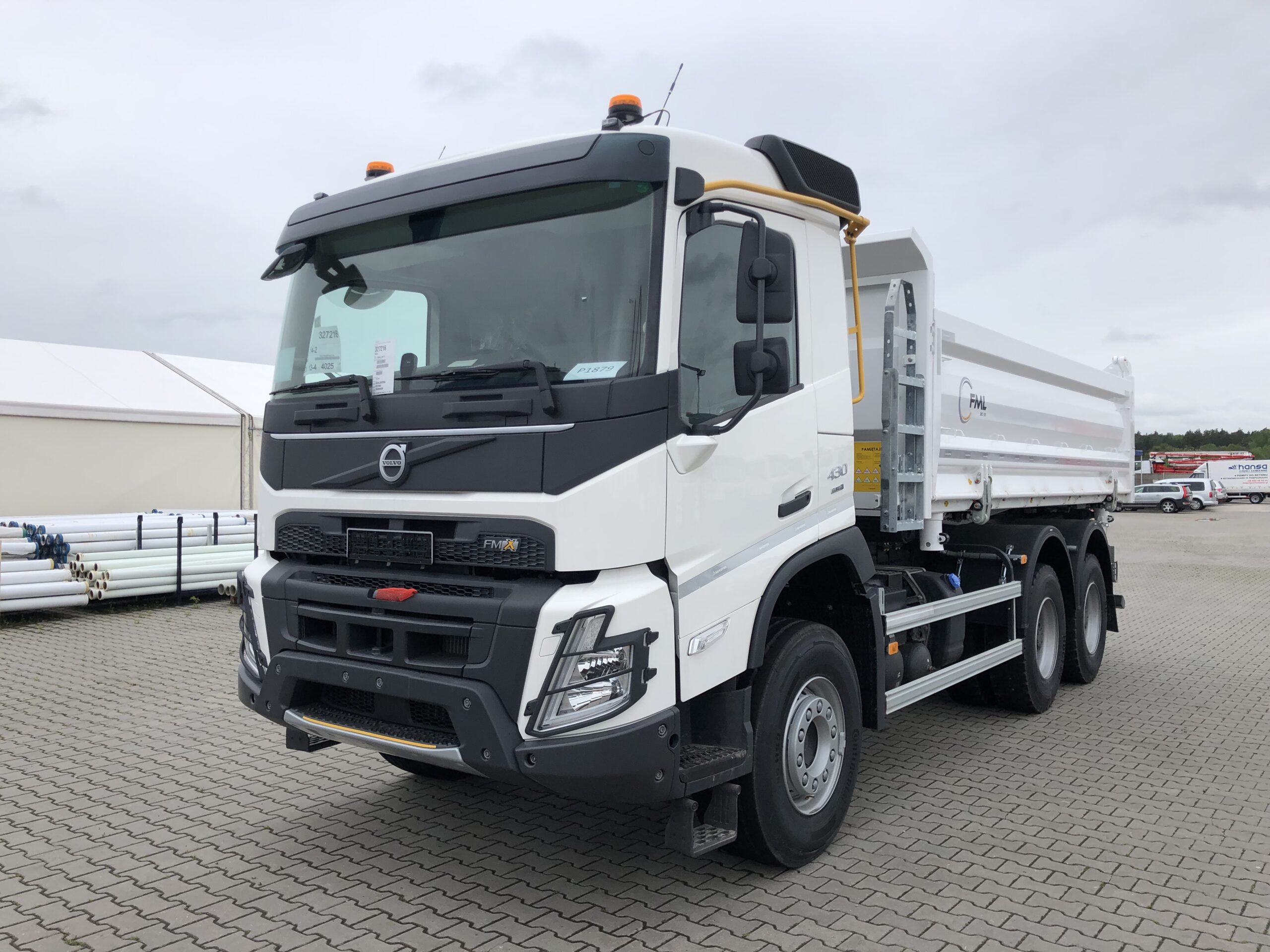

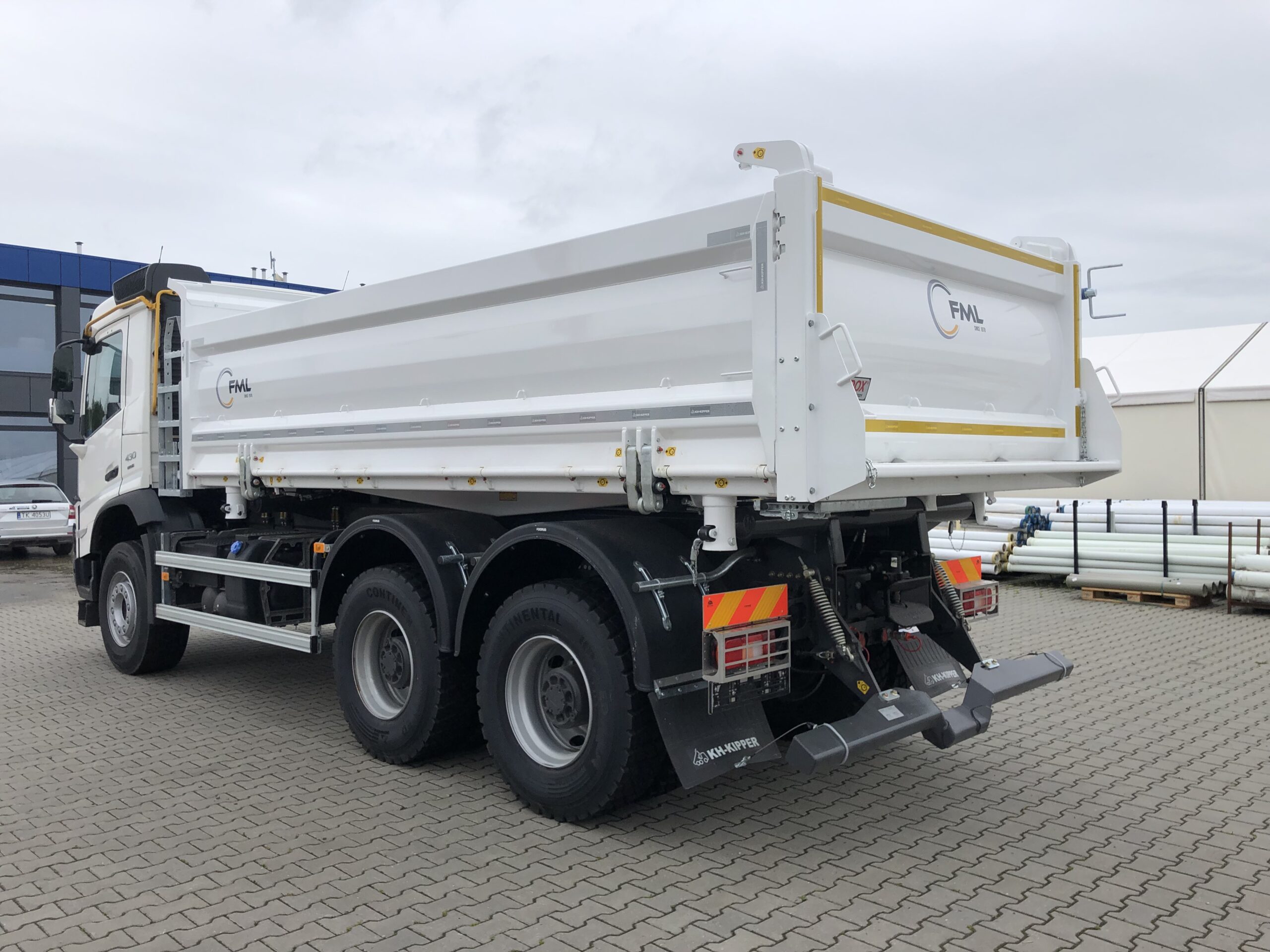

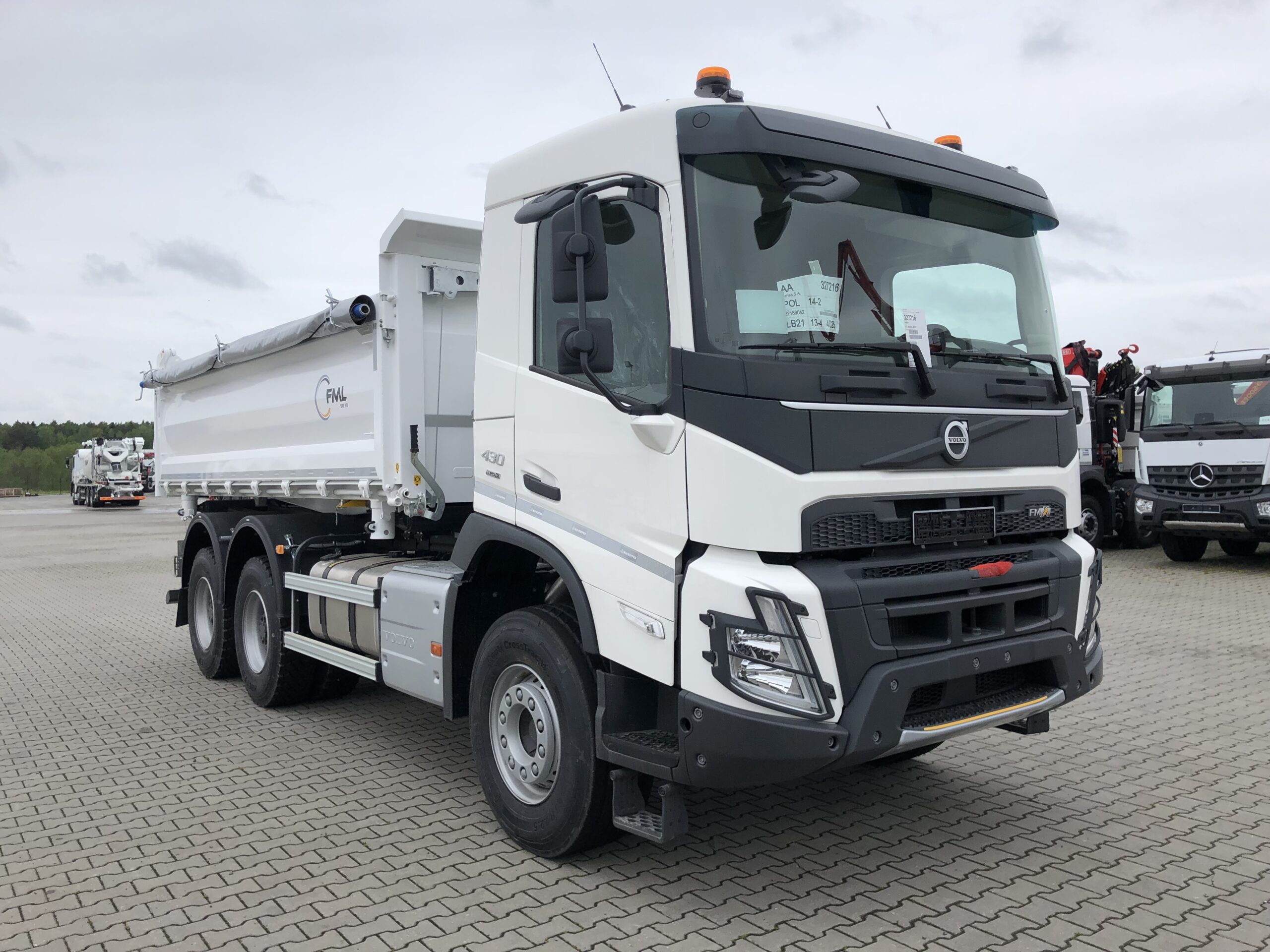

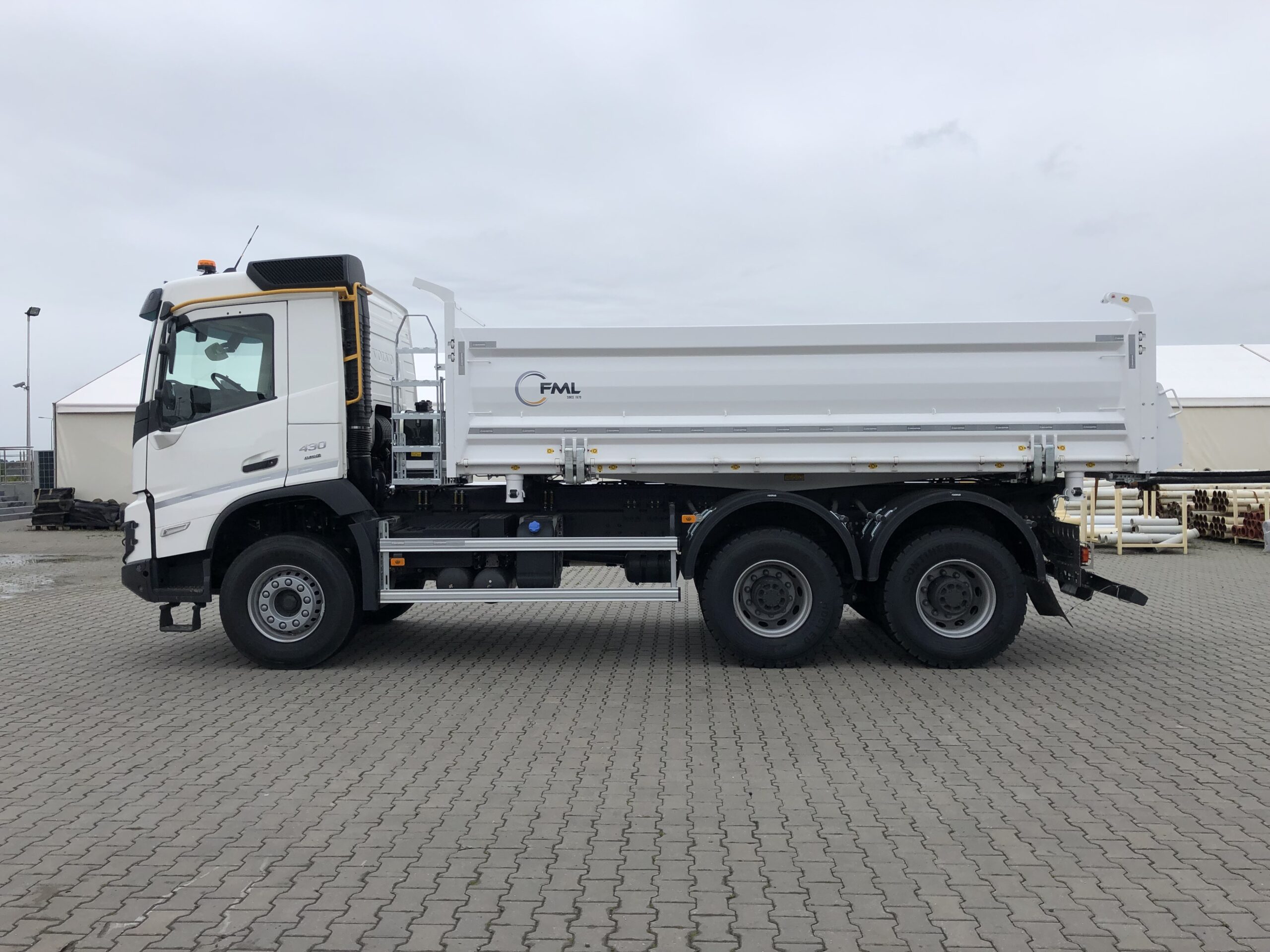

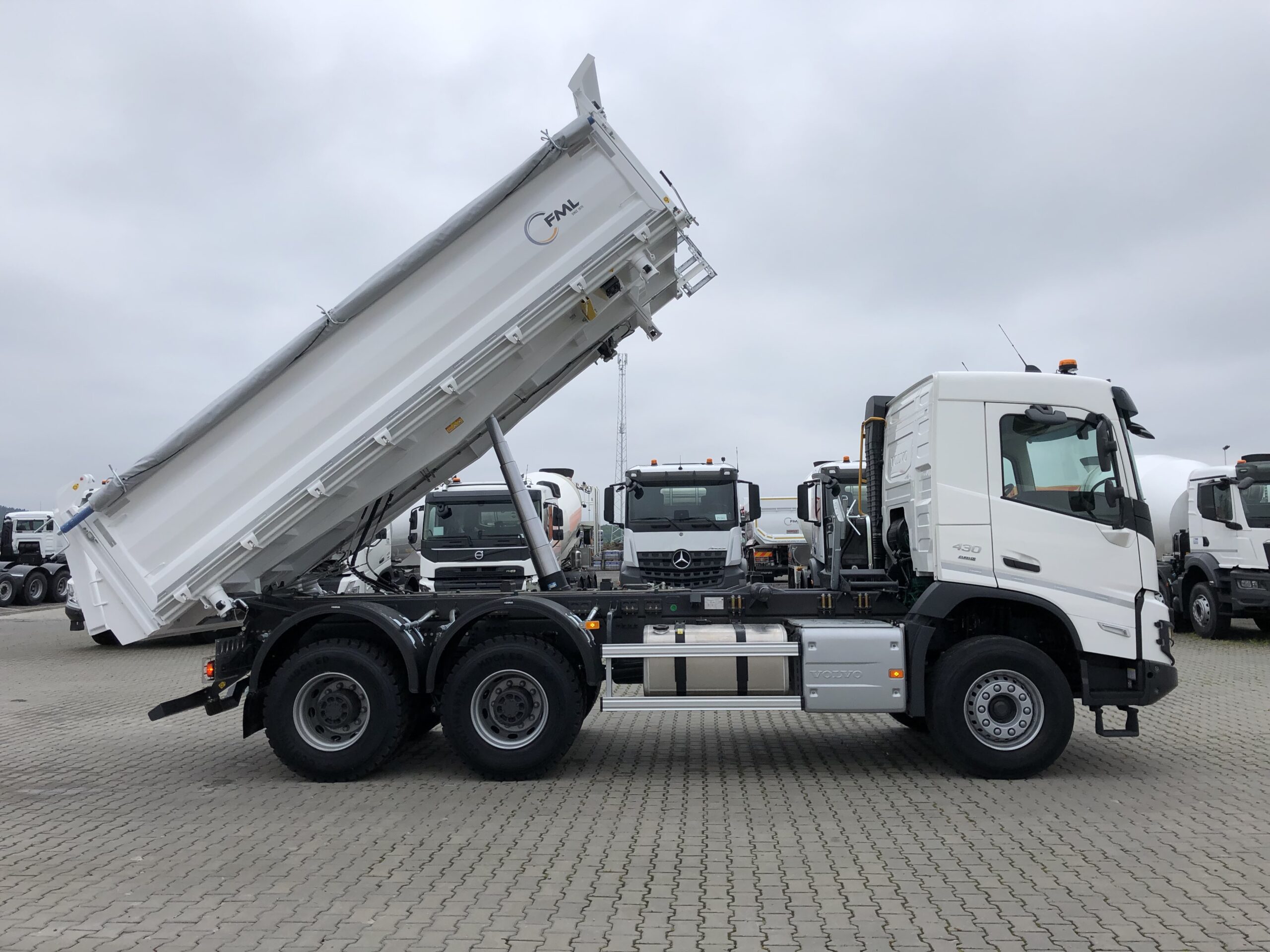

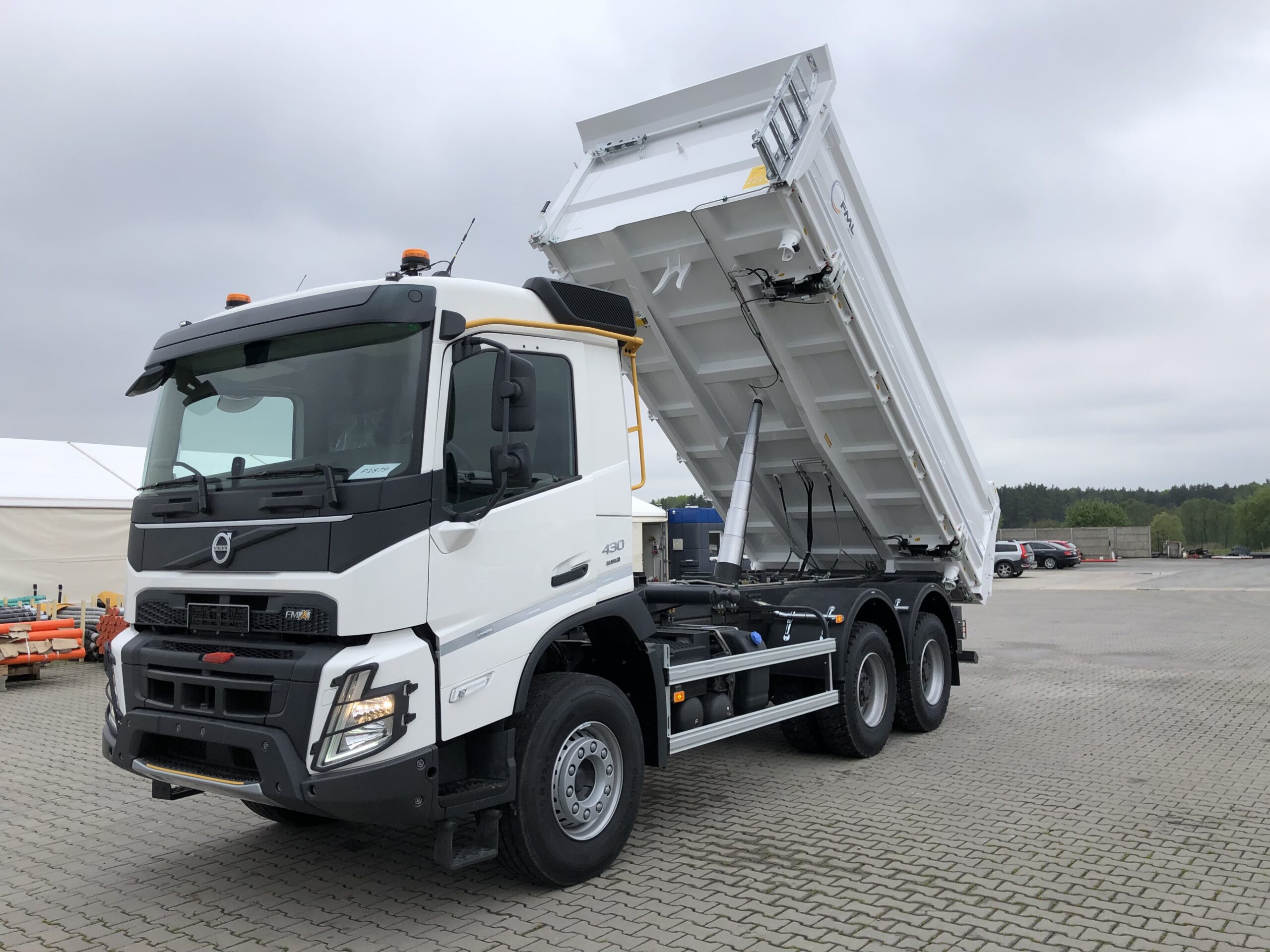

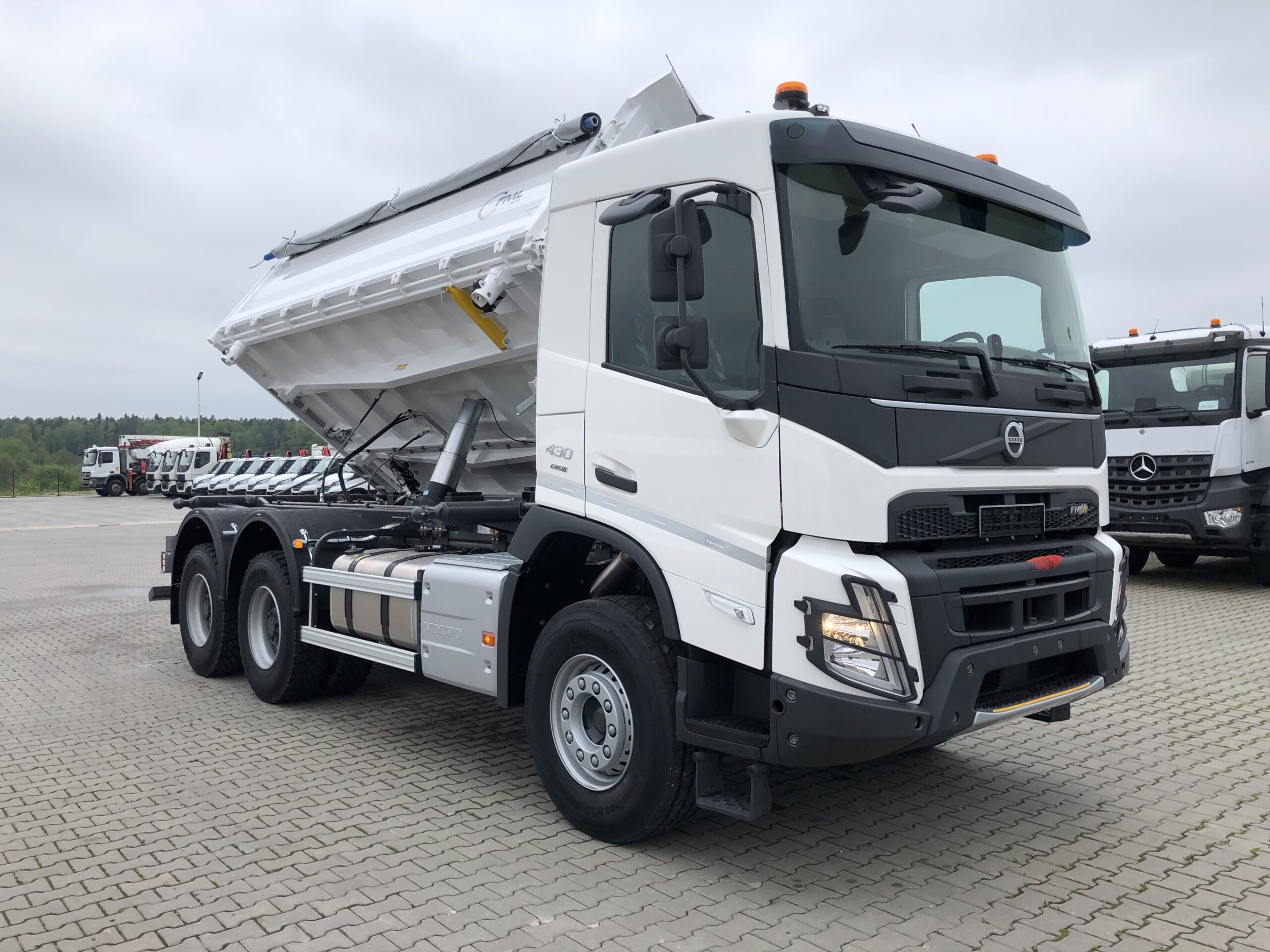

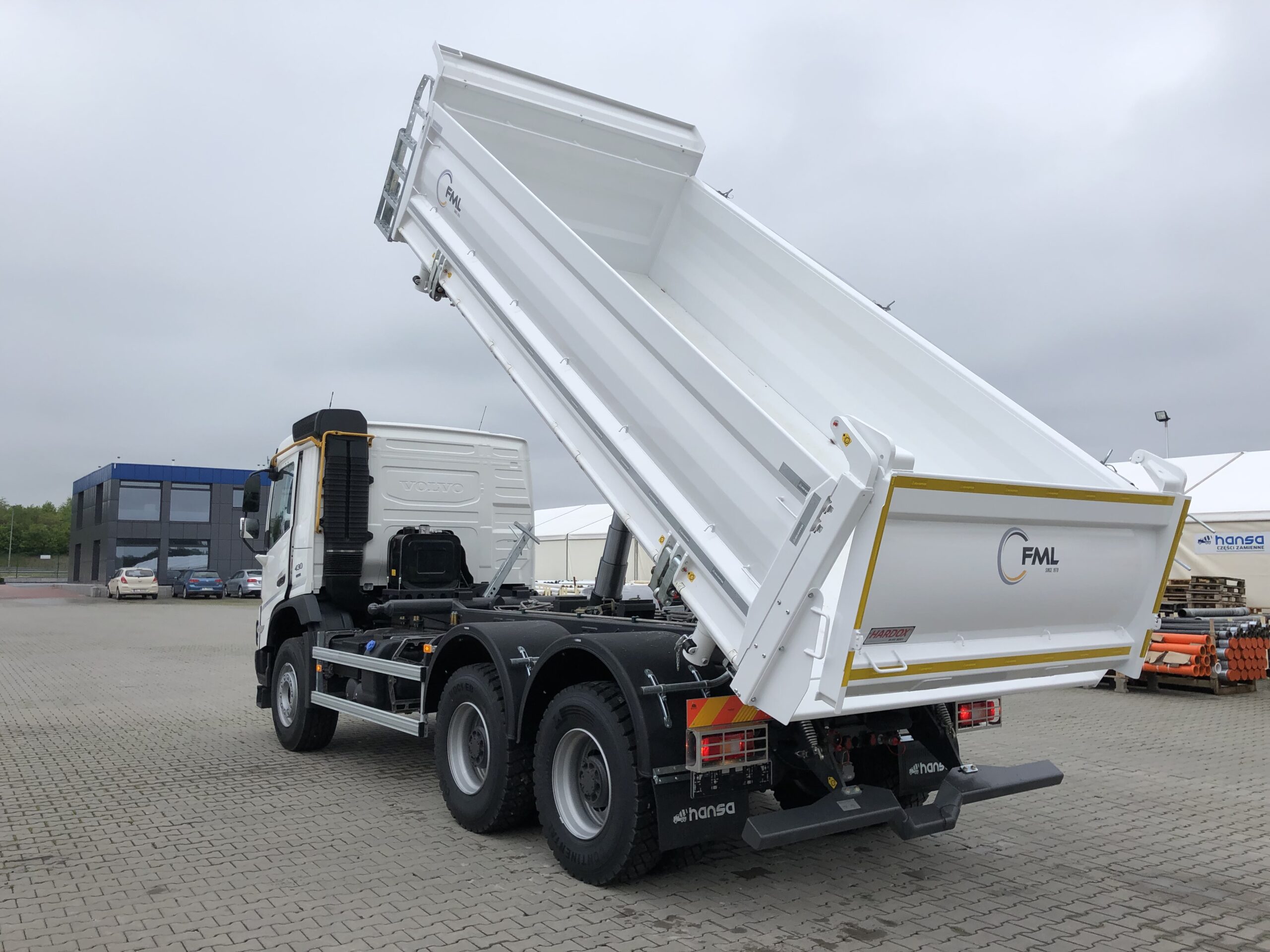

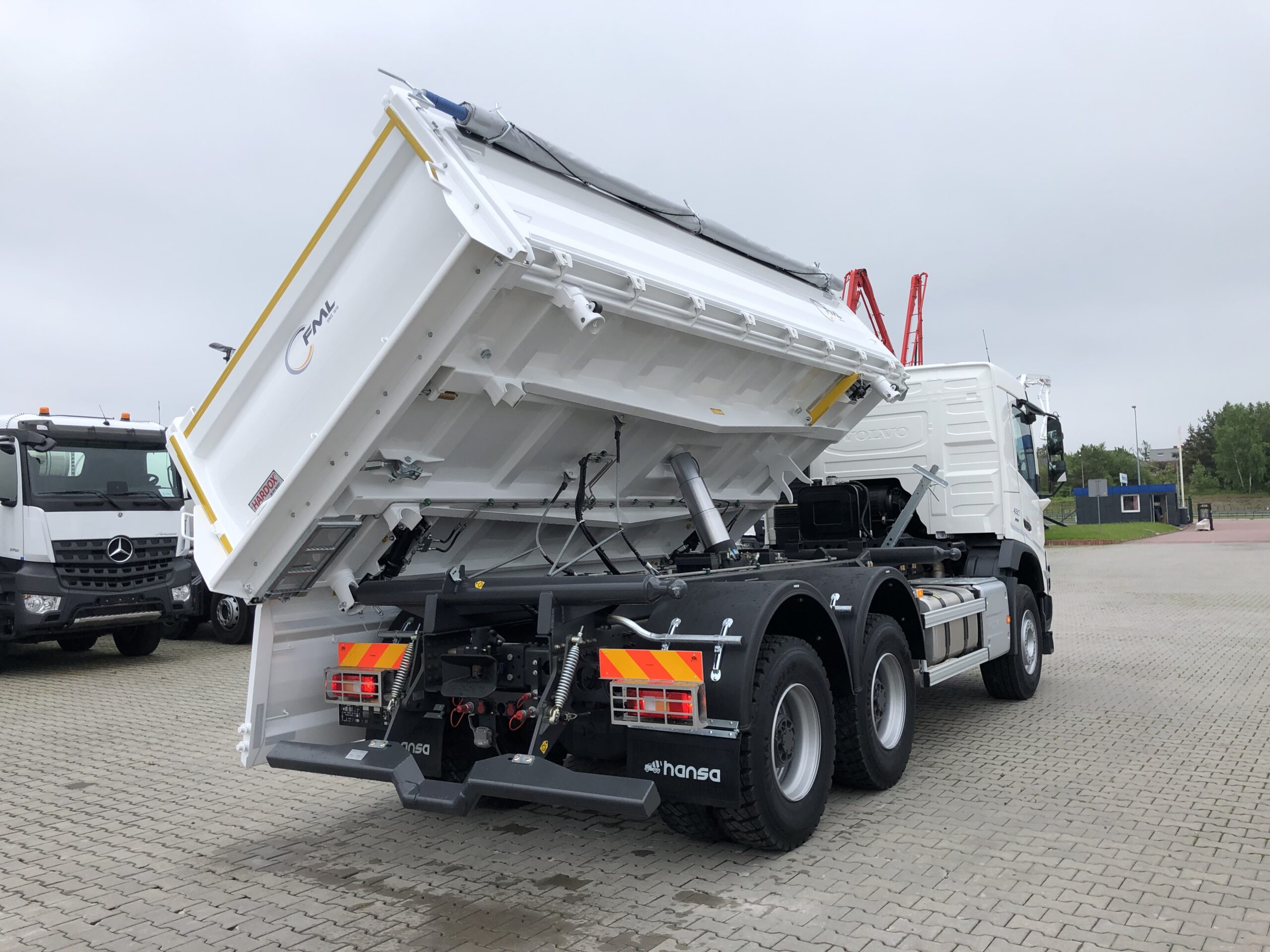

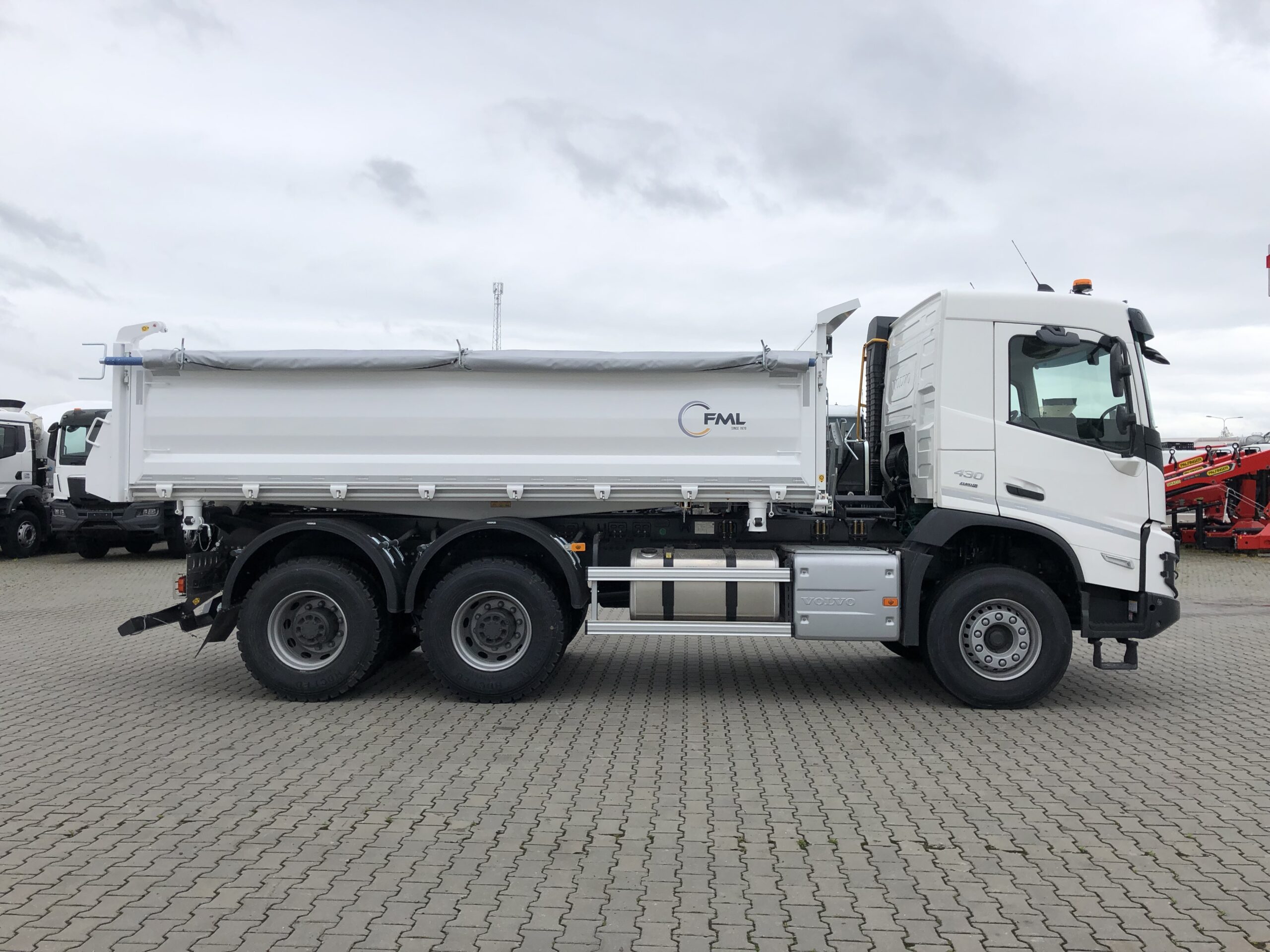

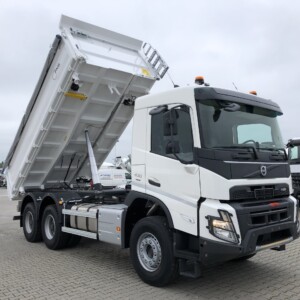

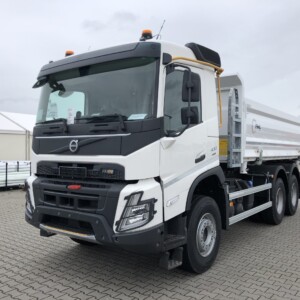

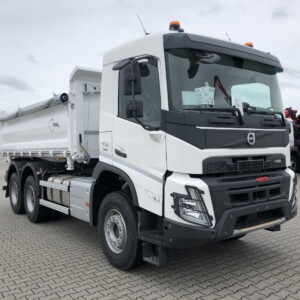

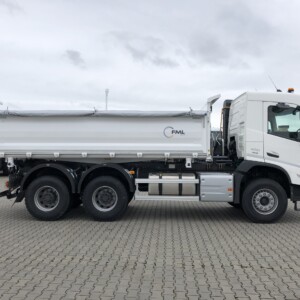

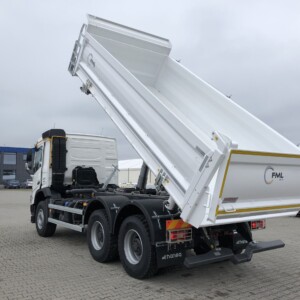

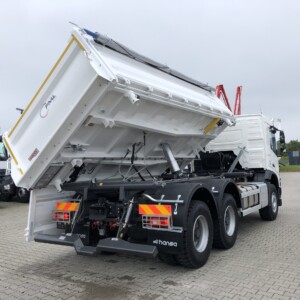

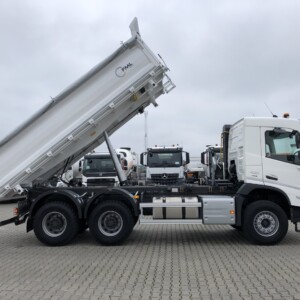

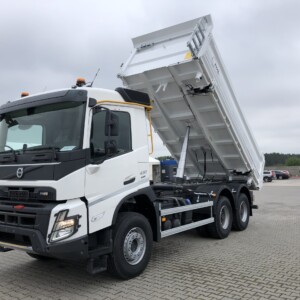

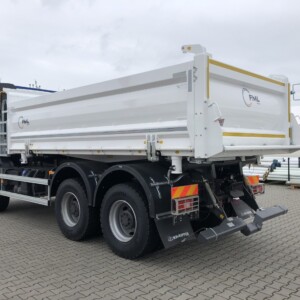

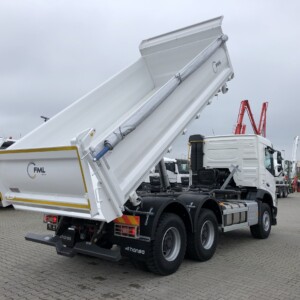

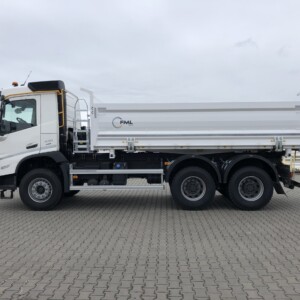

W3H three-way tipper on Volvo FMX 430 6×4 chassis

W3H three-way tipper on Volvo FMX 430 6×4 chassis

AVAILABLE QUANTITY: 1 PCS.

Technical specification
– L – internal length approx. 5 100 mm
– B – overall width approx. 2 500 mm
– H – side wall height 1000 mm
– V – volume approx. 12 m3
– floor 6 mm HARDOX450 steel,
– sides 4 mm HARDOX450 steel,
– front wall with a small roof and ladder,

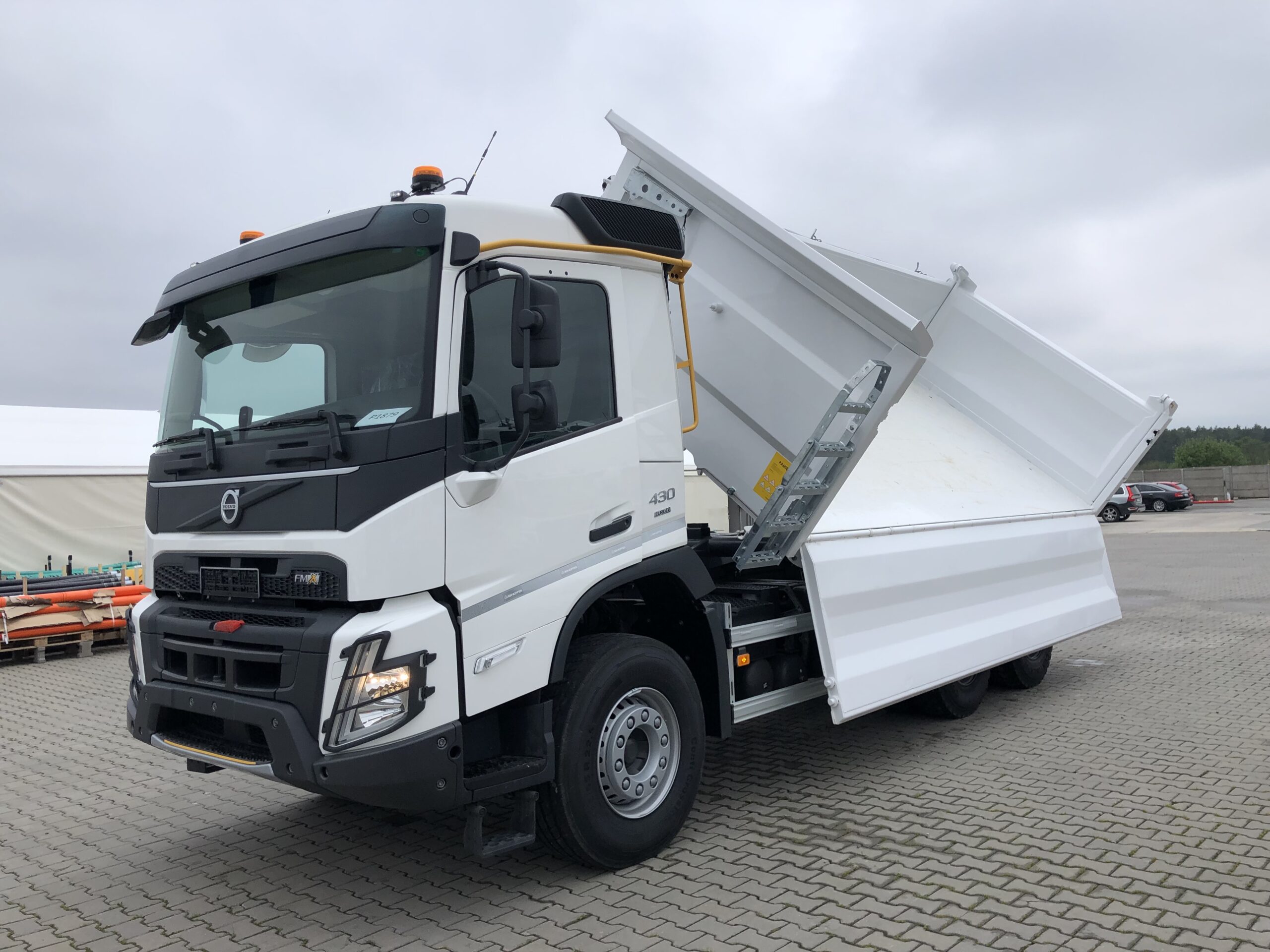

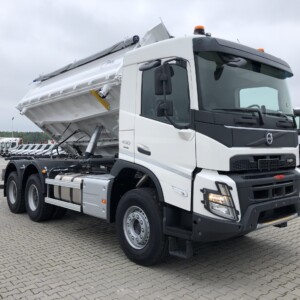

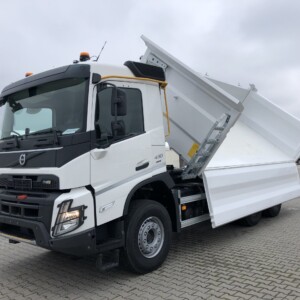

– left hydraulic side wall, so-called Hydroboard – 2 cylinders,
– right side wall with top hinges, tilting at the bottom, prepared for a bottom hinge and spring assistance,

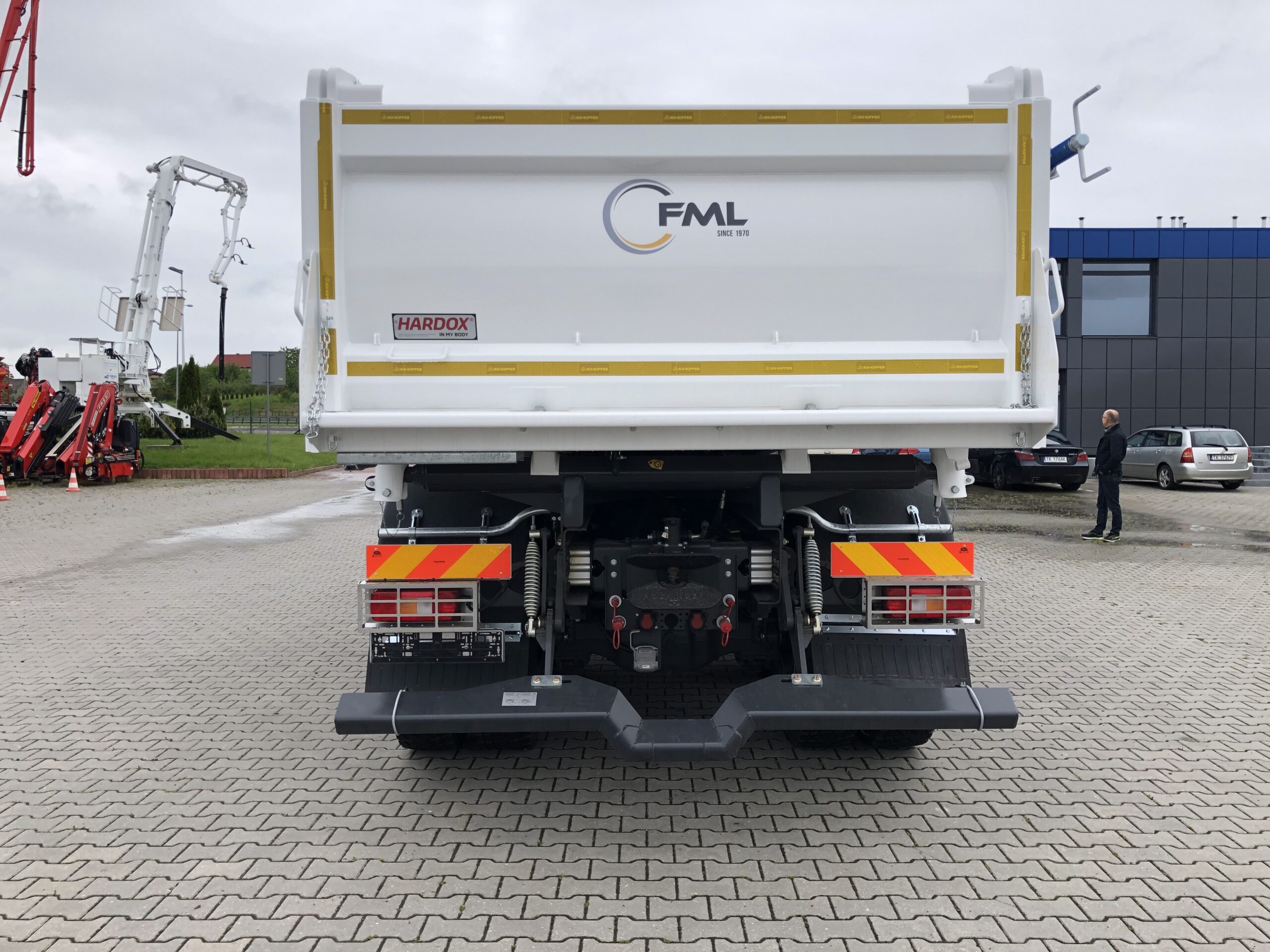

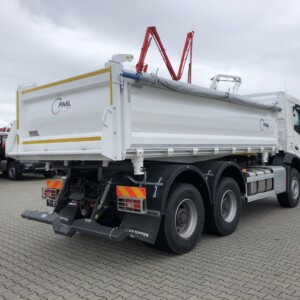

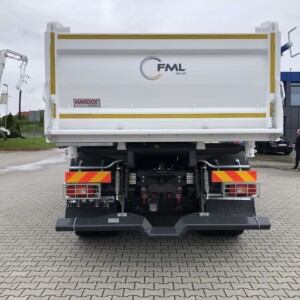

– tailgate with top hinges, tailgate locks opening automatically when the body is raised, prepared for a chain tailgate opening limiter,
– SNEEP rear shelf at floor level,

Hydraulics

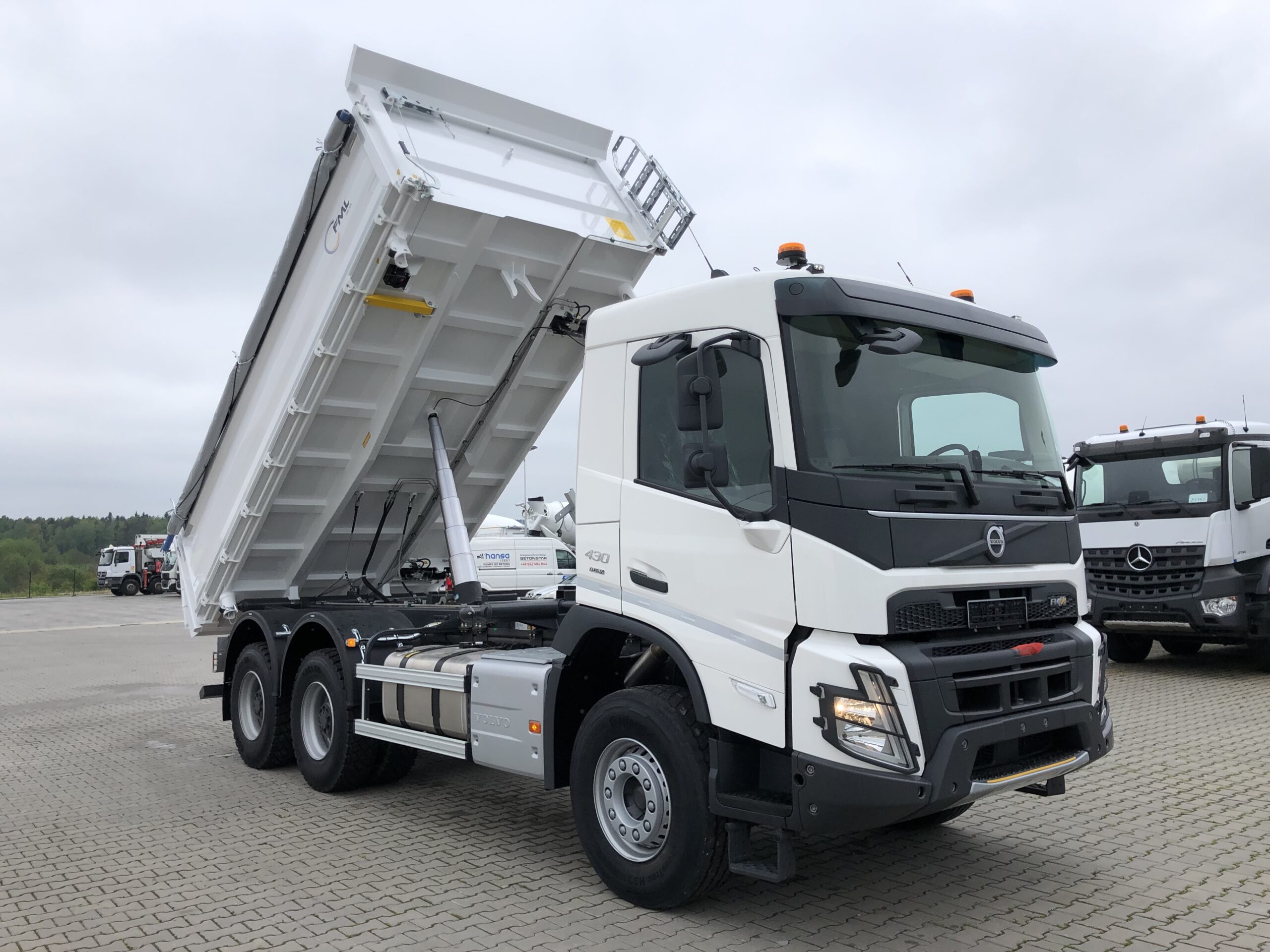

– underfloor hydraulic cylinder,
– hydraulic pump, oil tank with filter,
– main valve + hydraulic hoses,
– dual-circuit hydraulic system for the trailer,
– pneumatic tipping control from the cab,

Equipment
– manually rolled tarpaulin, rolling to the side, in grey,

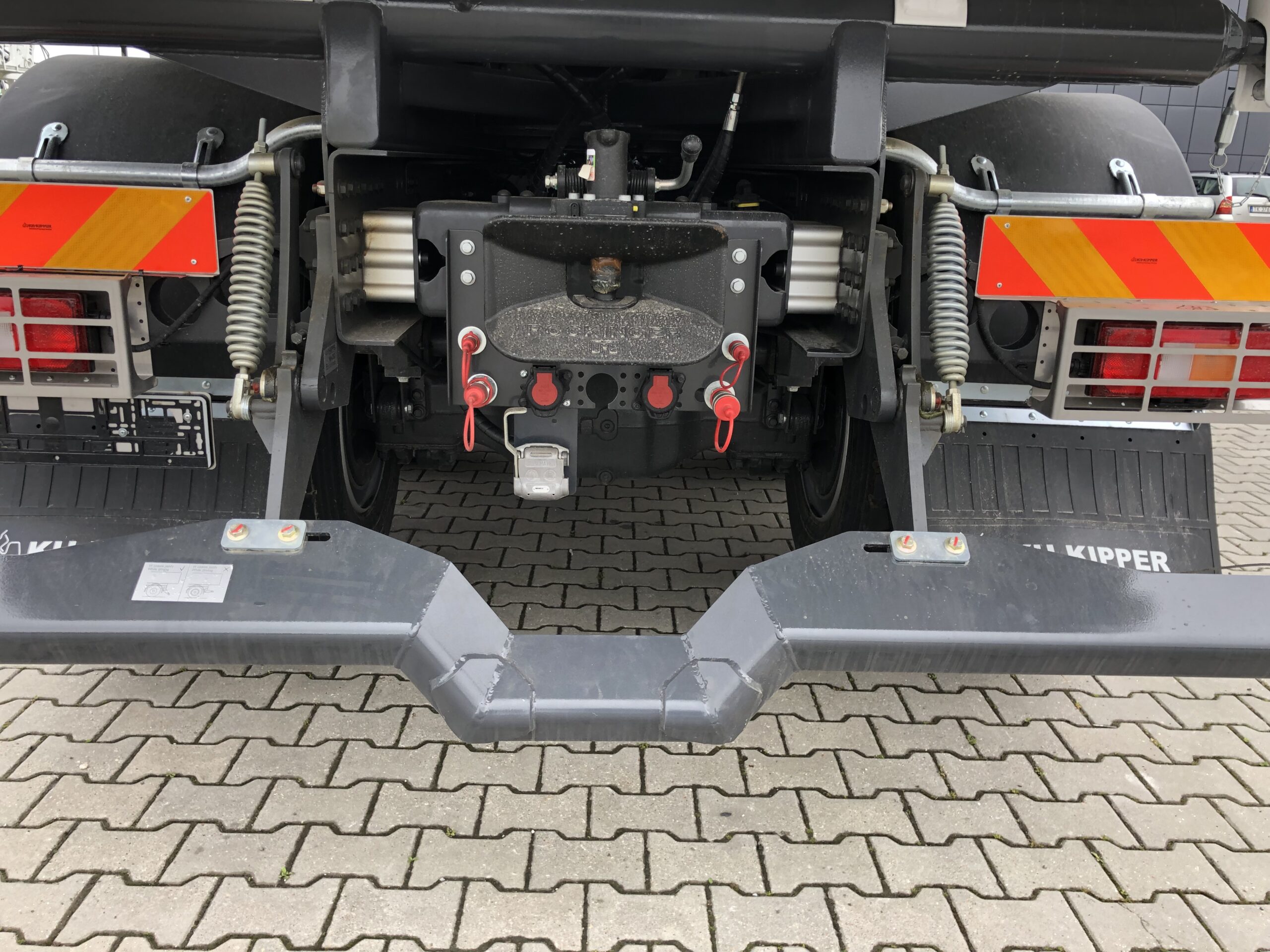

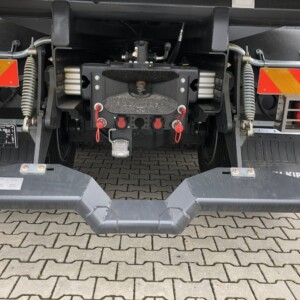

– folding rear bumper compliant with the standard,
– plastic mudguards + hinged mud flaps,
– spare wheel mount behind the cab,
– maintenance prop under the cargo body,
– aluminium side barriers,
– mounting for wheel chocks,
– yellow marker lights, distinguishing plates,
– rear light guards with tilting grille,
– contour marking with reflective tape,
– tipper shot-blasted, primed and painted in an agreed colour from the RAL palette…
– body fitted on the chassis
Body weight: approx. 4200 kg (+/- 2% )
body fitted on the chassis.
