Distinguishing features of the product:
Do you have any questions?
Technical data
*The manufacturer reserves the right to make changes
| Unit | Installation | |
| Volume | ||
| Nominal volume | m³ | 7 |
| Water line | m³ | 7,9 |
| Geometric volume | m³ | 12,1 |
| Mixer filling | % | 57,9 |
| Weights | ||
| Body weight | kg | 3240 |
| C - Position of center of gravity | mm | 2340 |
| Dimensions | ||
| Lf - Min. length of intermediate frame | mm | 4560 |
| Lm - Min. built-in length | mm | 5610 |
| O – Overhang | mm | 1050 |
| Hl - Height of hopper | mm | 2680 |
| Hm - Body height | mm | 2680 |
| Wm - Max. body width | mm | 2550 |
| Wf - Width of intermediate frame | / Depends on the chassis | ✓ |
| Ø - Mixer diameter | mm | 2200 |
| S° - Angle of the mixer | ° | 15 |
| Drive | ||

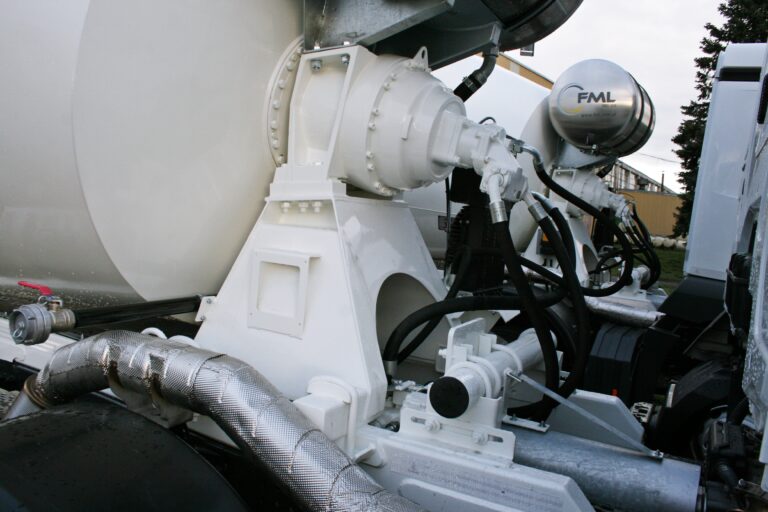

| Type of drive | Hydraulic | ✓ |
| Control type | Electric-mechanical | ✓ |

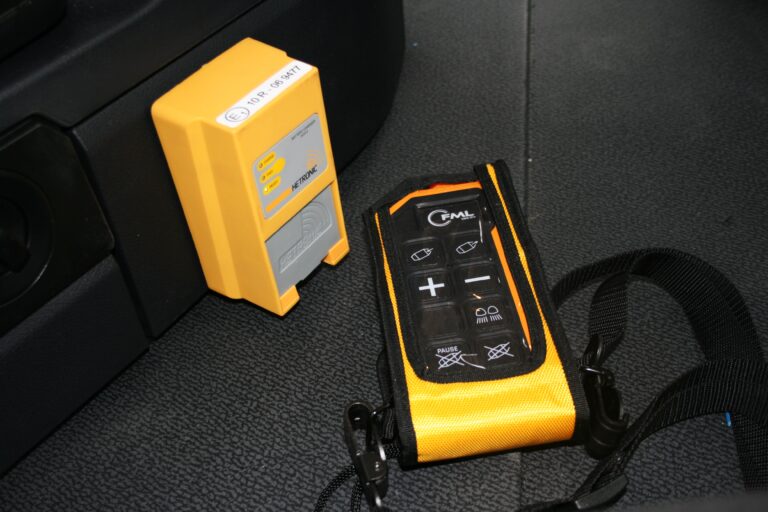

| Control type | Electric | ✓ |
| Driven by | PTO | ✓ |
| Required rotational power | Nm | 300 |
| Mixer speed | r.p.m. | 0-14 |
| Water system | ||

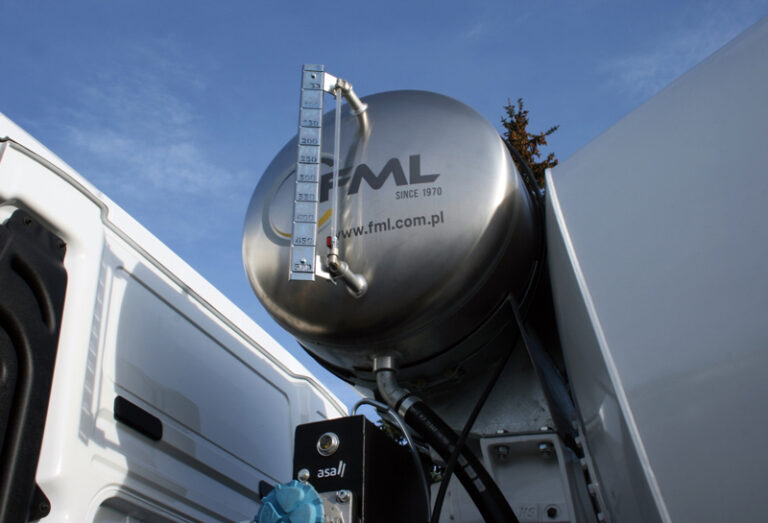

| Volume of water tank | l | 300-800 |

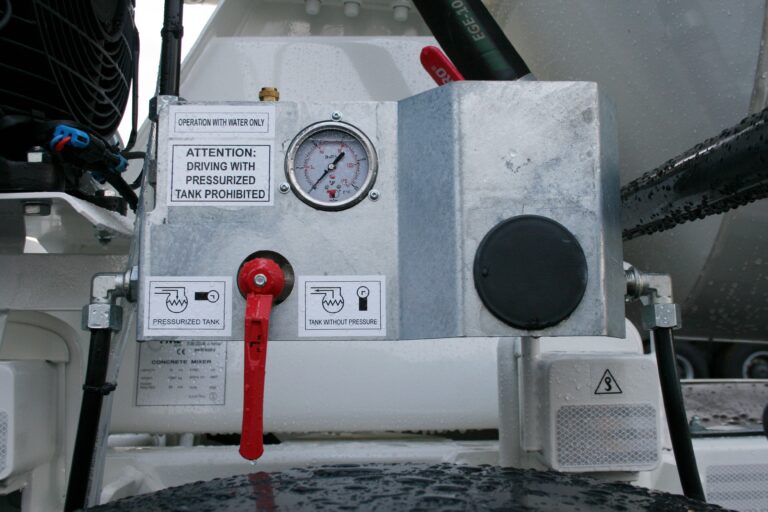

| Pressure tank | - | ✓ |
| Working pressure | bar | 4 |
| Chassis | ||
| Number of chassis axles | - | 3 |

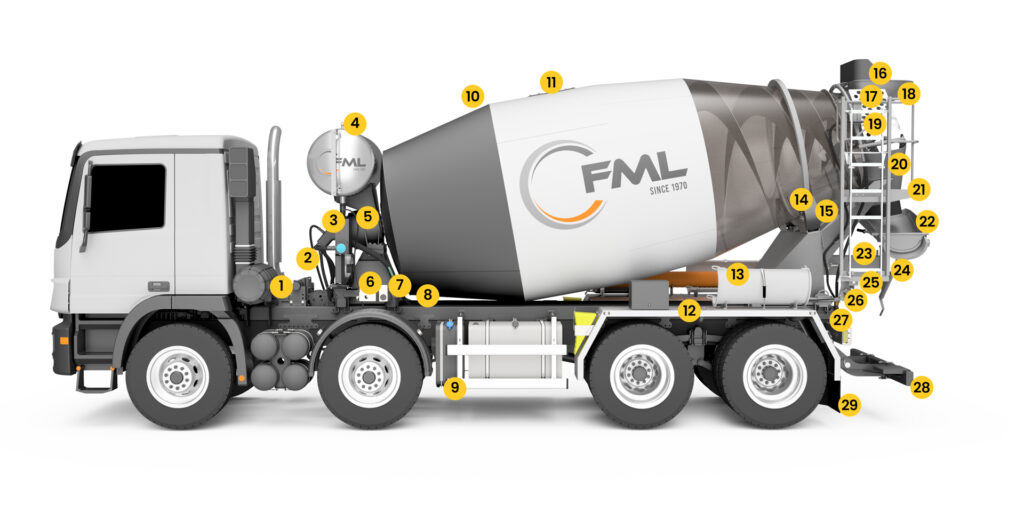

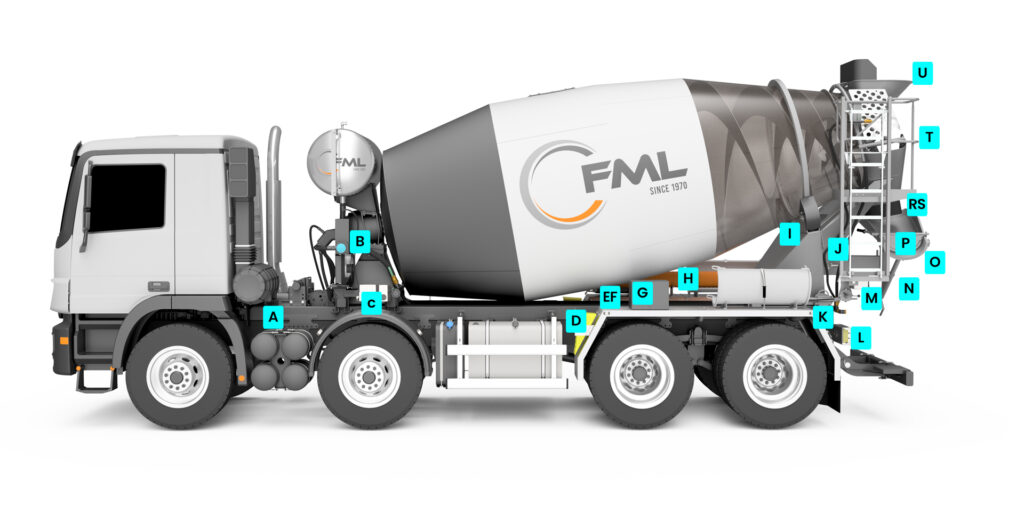

EQUIPMENT

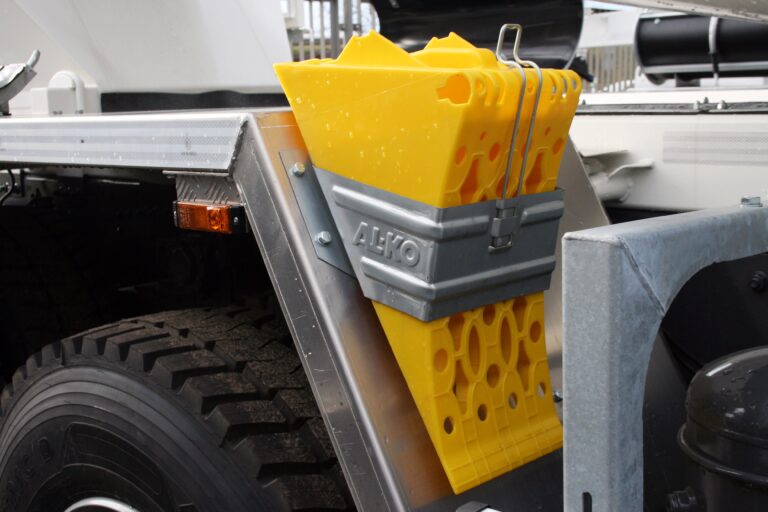

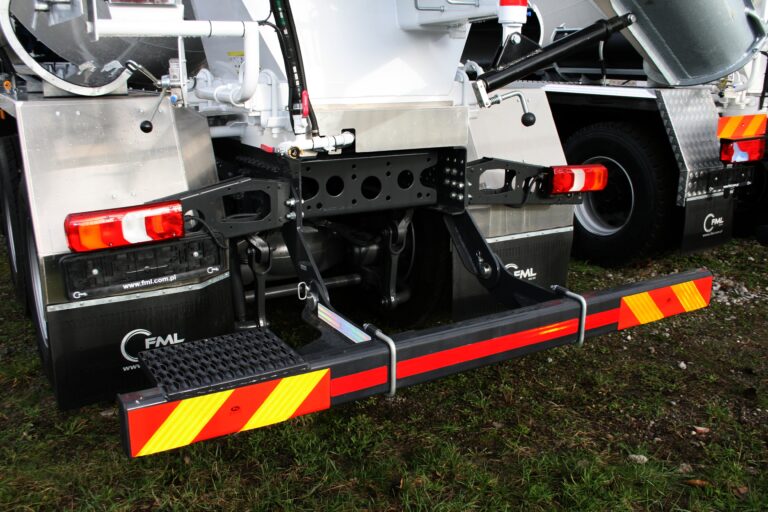

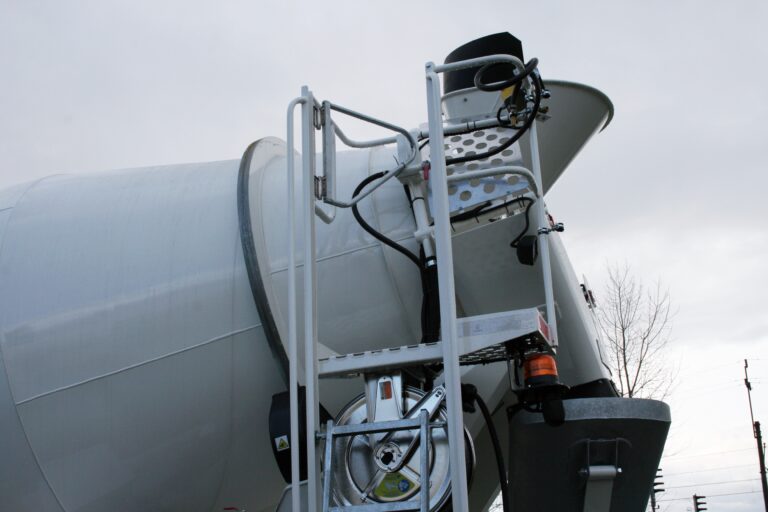

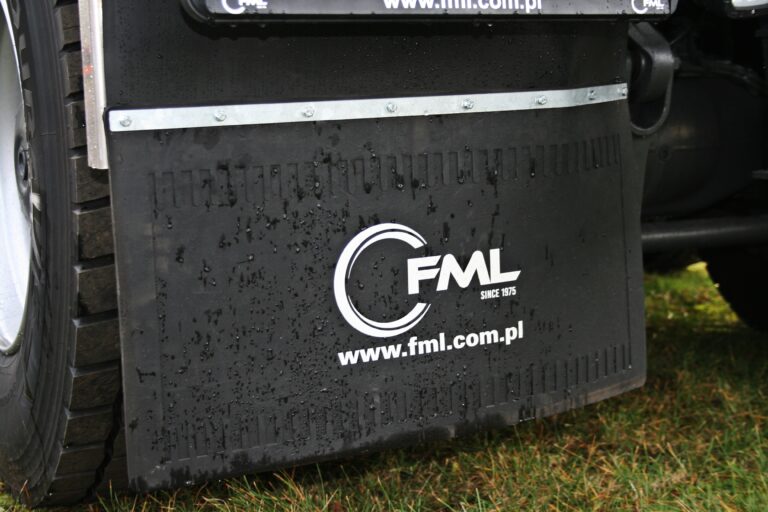

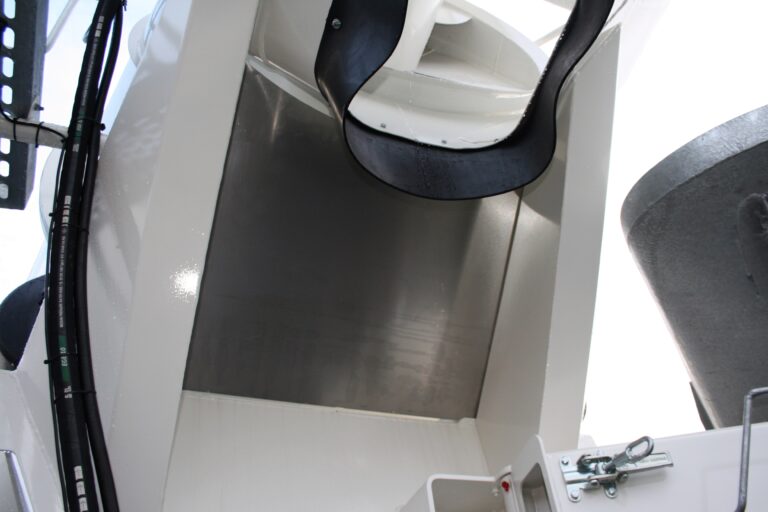

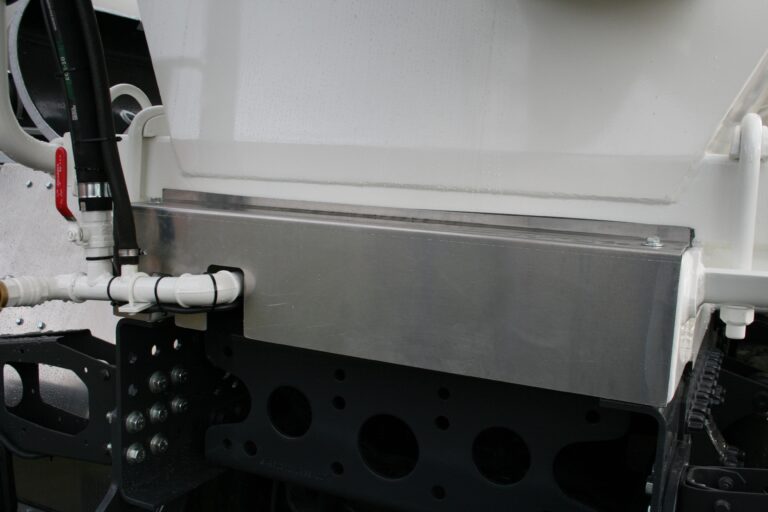

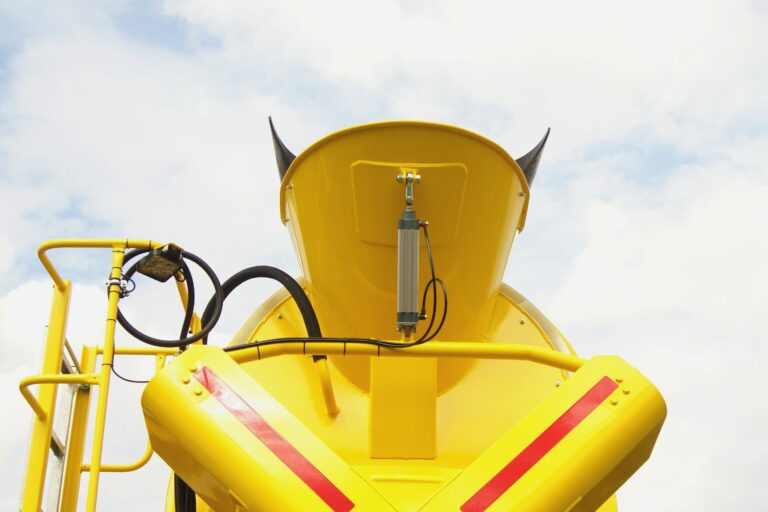

OPTIONAL EQUIPMENT FOR THE CUSTOMER
Gallery
