Technical data
*The manufacturer reserves the right to make changes.
| Value | Unit | Superstructure |
|---|---|---|
| Volume | ||
| Nominal volume | m³ | 11 |
| Water line | m³ | 11,9 |
| Geometric volume | m³ | 18,8 |
| Mixer filling | % | 58,5 |
| Weights | ||
| Body weight | kg | 4550 |

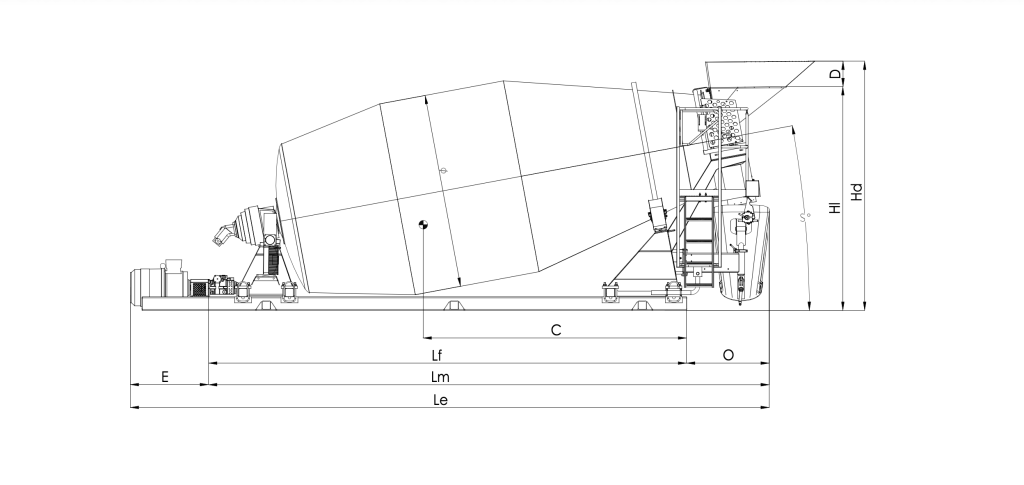

| C - Center of gravity position | mm | 3180 |

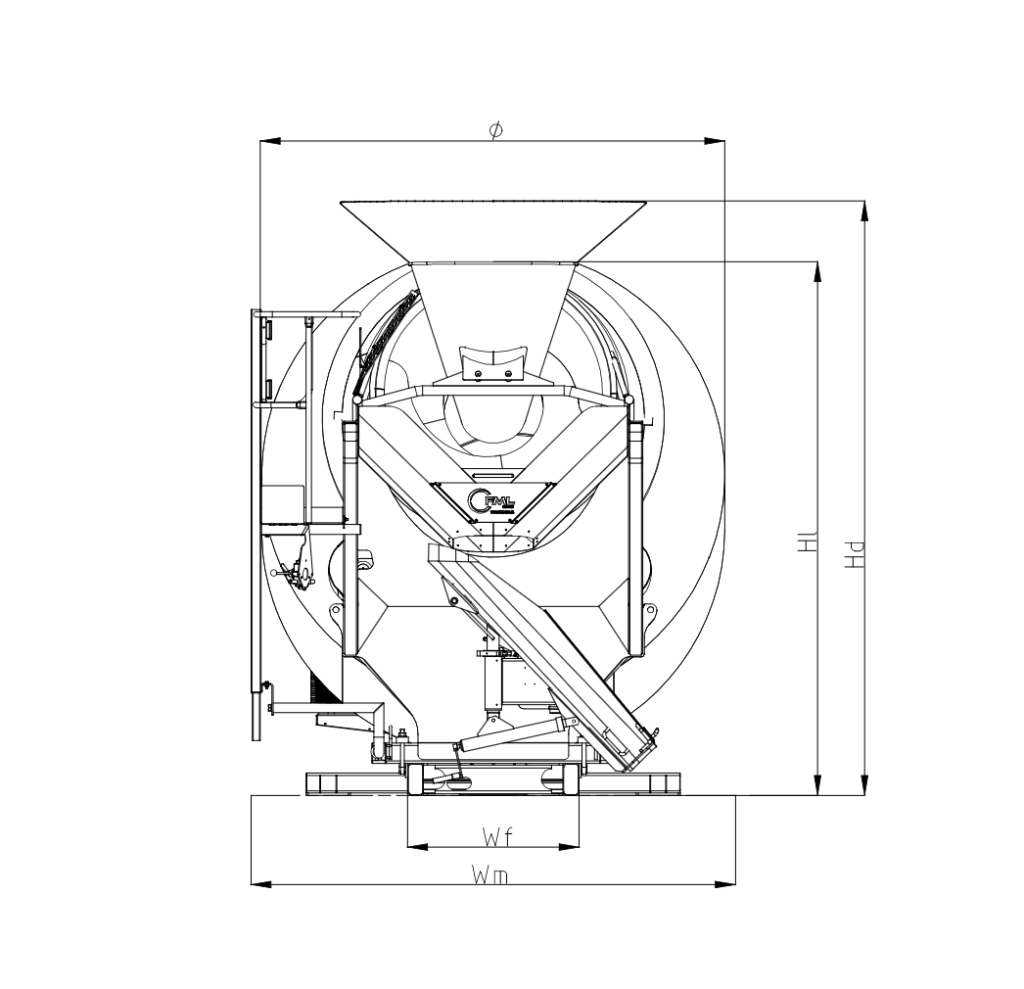

| Dimensions | ||
| Lf - Min. intermediate frame length | mm | 6455 |
| Lm - Min. body length | mm | 7505 |
| Ld - Approximate length with engine | mm | 8505 |
| O - Overhang | mm | 1050 |
| E - Overhang with engine | mm | 1000 |
| D - Flange height | mm | 300 |

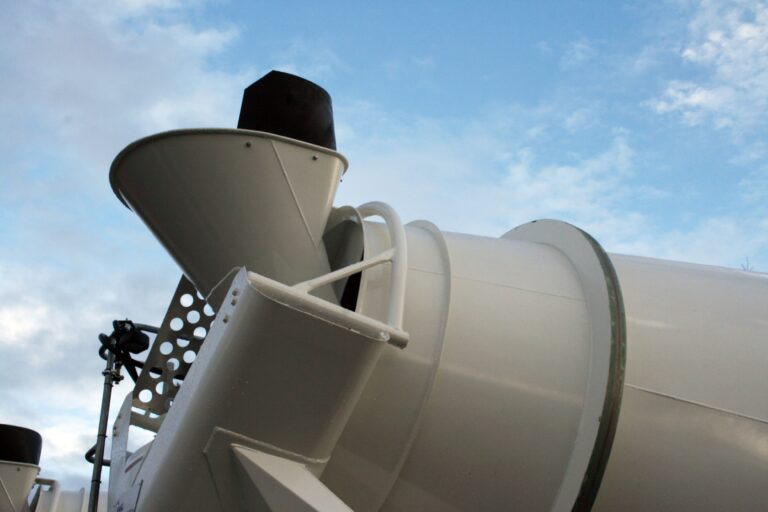

| Hl - Hopper height | mm | 2750 |
| Hm - Body height | mm | 2825 |
| Hd - Height with flange | mm | 3125 |
| Wm - Max. body width | mm | 2400 |
| Wf - Intermediate frame width | mm | 852 |
| Ø - Mixer diameter | mm | 2300 |
| S° - Mixer angle | ° | 10 |
| Drive | ||

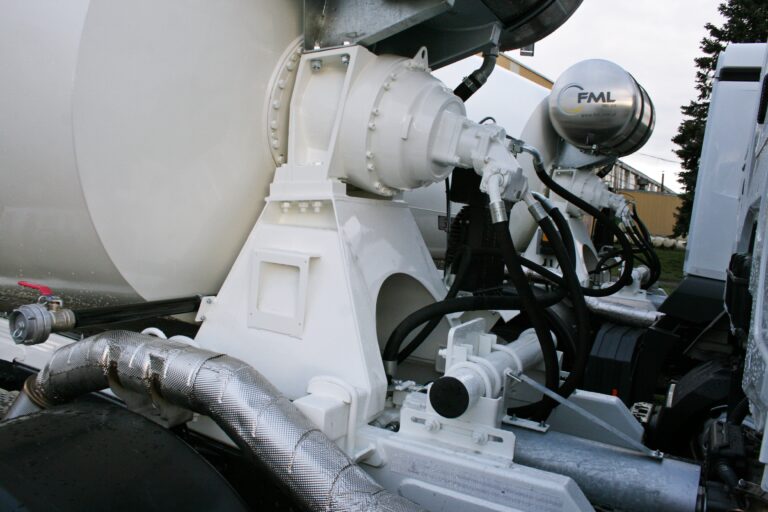

| Drive type | Hydraulic | ✓ |

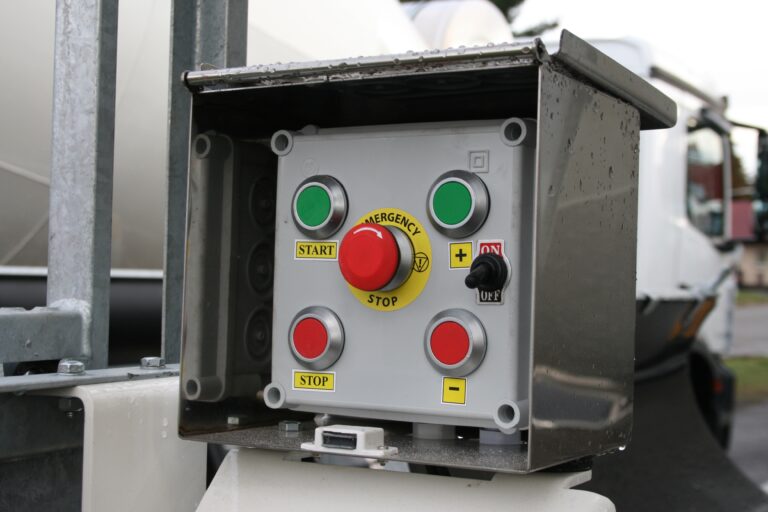

| Control type | Electromechanical | ✓ |
| Electric | ✓ | |
| Driven by | Electric motor | ✓ |
| Mixer speed | r.p.m. | 0-14 |

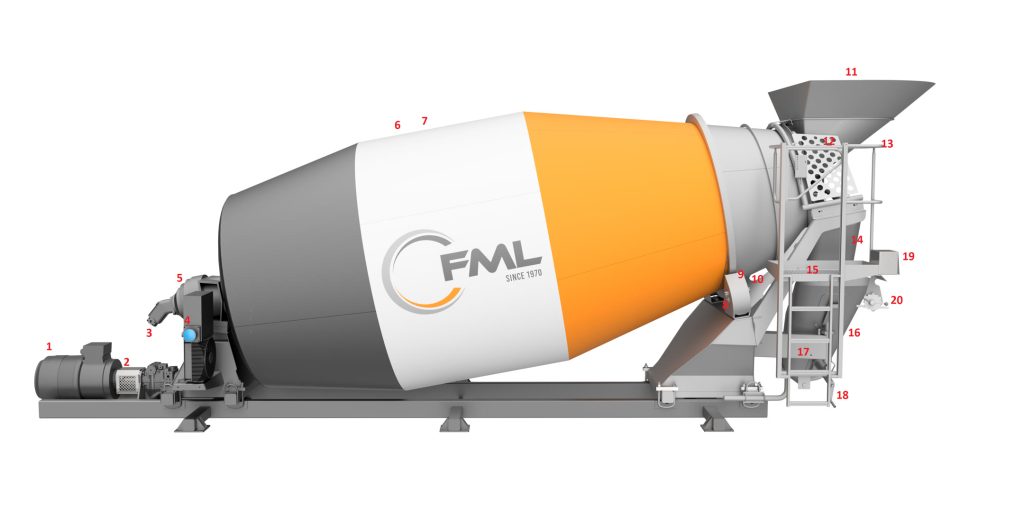

Equipment
